Front Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2014 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the wheel and tire.

    Refer to: WHEEL AND TIRE .

  3. Torque  : 18 lb.in (2 Nm)

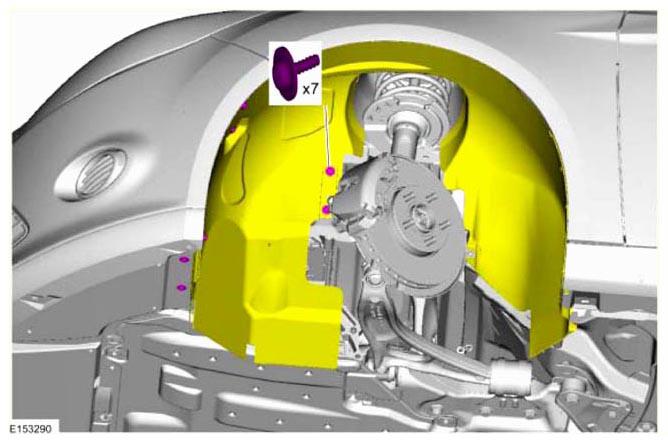

    G08056400

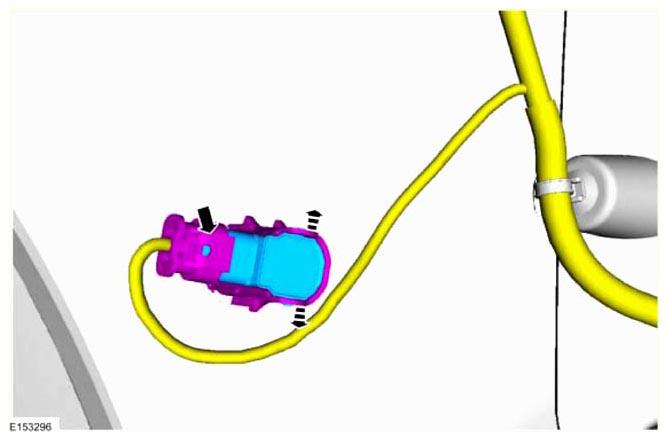

  4. G08056401
