Active Park Assist Switch: Removal

WARNING: This page is about a different car, the 2014 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the HVAC control module.

    Refer to: HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE .

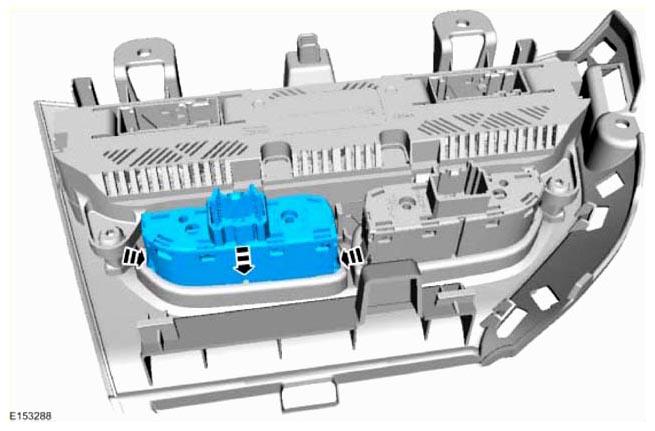

  3. G08056402
