Brake Master Cylinder: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: HEALTH AND SAFETY PRECAUTIONS .

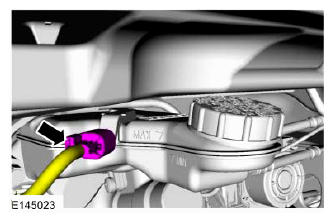

  2. G08590400
  3. Torque  : 25 Nm

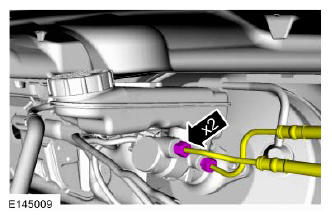

    G08590401
  4. Torque  : 25 Nm

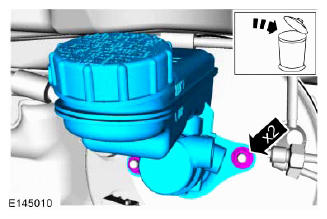

    G08590402
  5. Torque  : 25 Nm

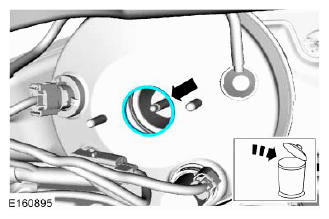

    G08590403
