Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.

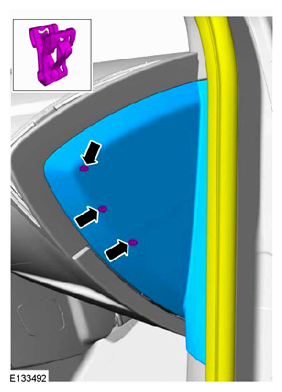

Remove the RH and LH A-pillar trim.
Refer to: A-PILLAR TRIM PANEL
Both sides.
Torque : 2 Nm
Torque : 8 Nm
Remove the front floor console.
Refer to: FLOOR CONSOLE - VEHICLES WITH: CENTER ARMREST

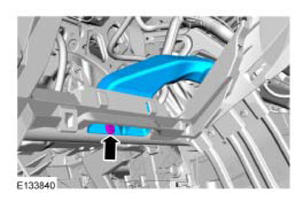

Depending on vehicle option content, remove the FCDIM or the FDIM .
Refer to: FRONT DISPLAY INTERFACE MODULE (FDIM)
Torque : 1 Nm
Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.
Torque : 28 Nm

Fig 1: Locating Steering Column Shaft-To-Steering Gear Bolt
Courtesy of FORD MOTOR CO.
Remove and discard the 4 steering column bolts and remove the steering column.
Torque : 28 Nm

Fig 2: Locating Steering Column Mounting Bolts
Courtesy of FORD MOTOR CO.

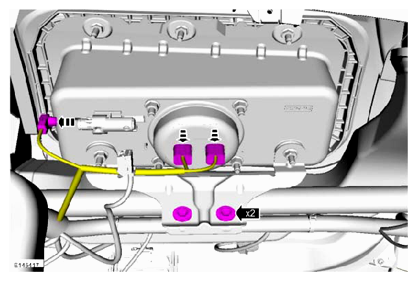

Torque : 1 Nm
NOTE: To avoid damaging the upper section, the aid of an assistant is required to carry out this step.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the upper section or damage to the components may occur.

NOTE: Install all the bolts finger tight before final tightening.

Remove the instrument panel upper section.

Torque : 3 Nm
