In-Vehicle Crossbeam: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS
Remove the cowl panel grille.
Refer to: COWL PANEL GRILLE
Torque : 25 Nm
Remove the instrument panel upper section.
Refer to: INSTRUMENT PANEL
Remove both front doors.
Refer to: FRONT DOOR
On both sides.
Torque : 40 Nm
Torque : 25 Nm
Torque : 10 Nm
Torque : 25 Nm
NOTE: To avoid damaging the in-vehicle cross beam, an assistant is required when carrying out the following steps.

NOTE: Remove the bolts from one side completely and support the in-vehicle cross beam before removing the bolts from the opposite side

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the in-vehicle cross beam or damage to the components may occur.

Remove the in-vehicle cross beam from the vehicle.

Torque : 25 Nm

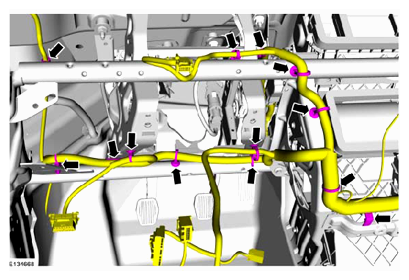

Fig 1: Locating In-Vehicle Cross Beam Mounting Bolts
Courtesy of FORD MOTOR CO.
