Cluster and Panel Illumination

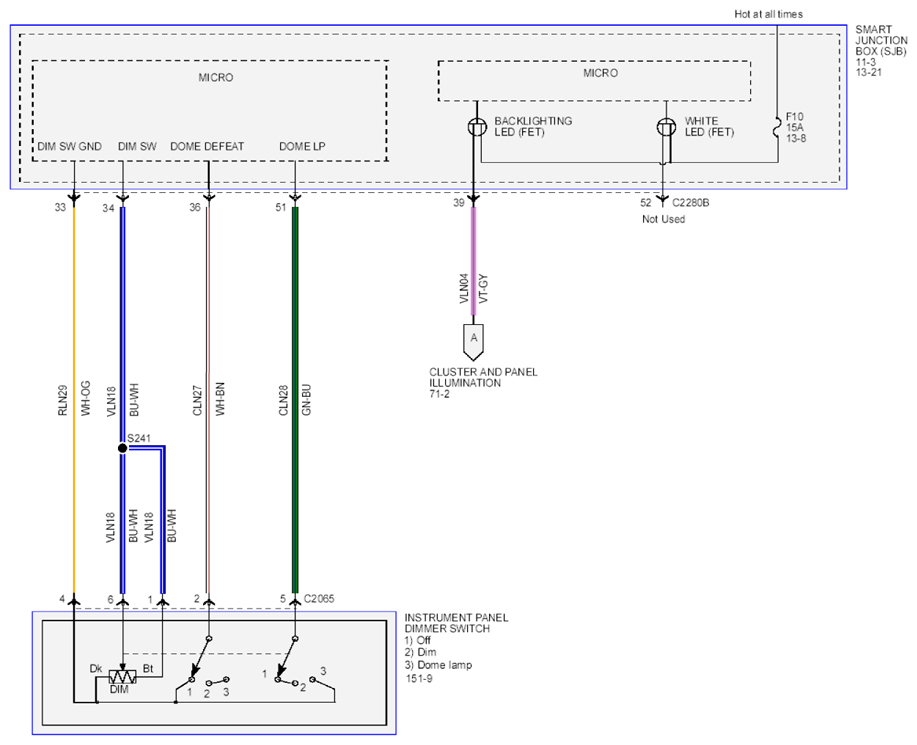

Fig 1: Cluster And Panel Illumination Circuit Diagram (View 1 Of 3)
G07905633Courtesy of FORD MOTOR CO.

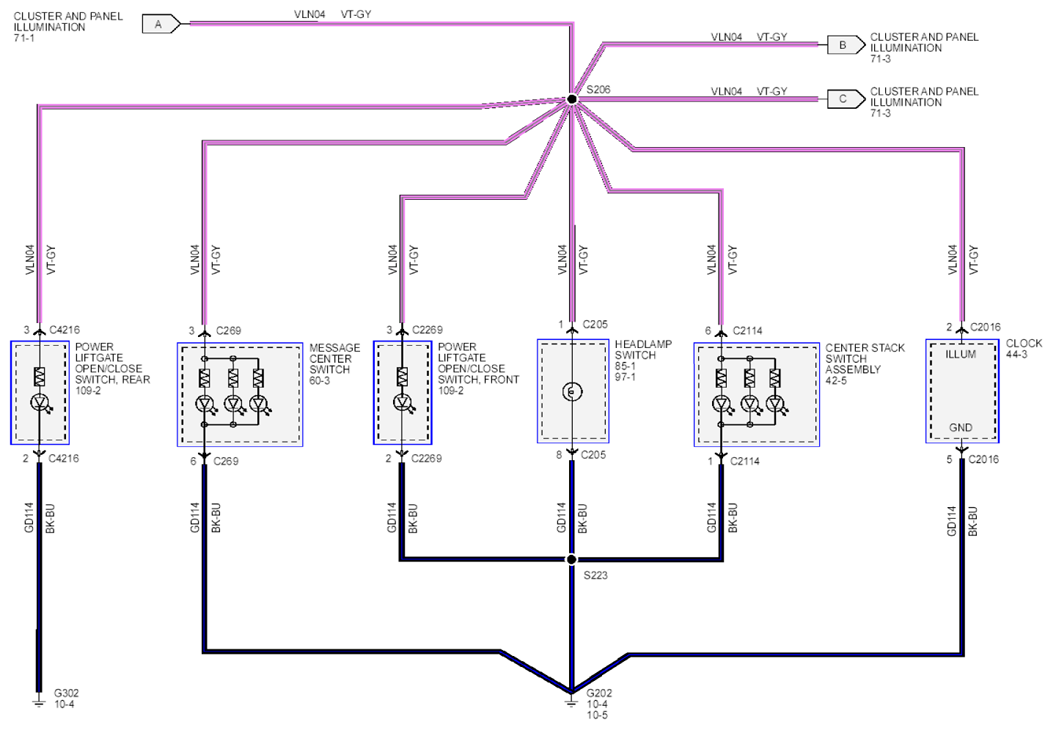

Fig 2: Cluster And Panel Illumination Circuit Diagram (View 2 Of 3)
G07905634Courtesy of FORD MOTOR CO.

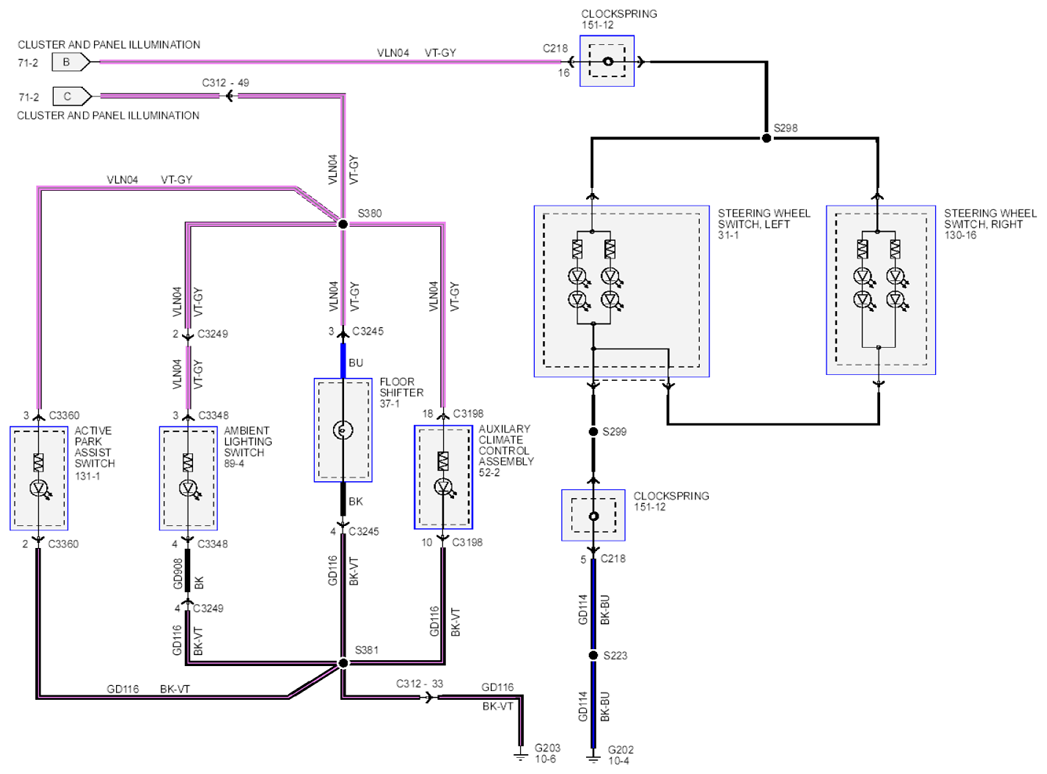

Fig 3: Cluster And Panel Illumination Circuit Diagram (View 3 Of 3)
G07905635Courtesy of FORD MOTOR CO.
