LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2012
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrumentation, Message Center and Warning Chimes
Instrumentation, Message Center and Warning Chimes
Instrumentation, Message Center and Warning Chimes
DTC Charts

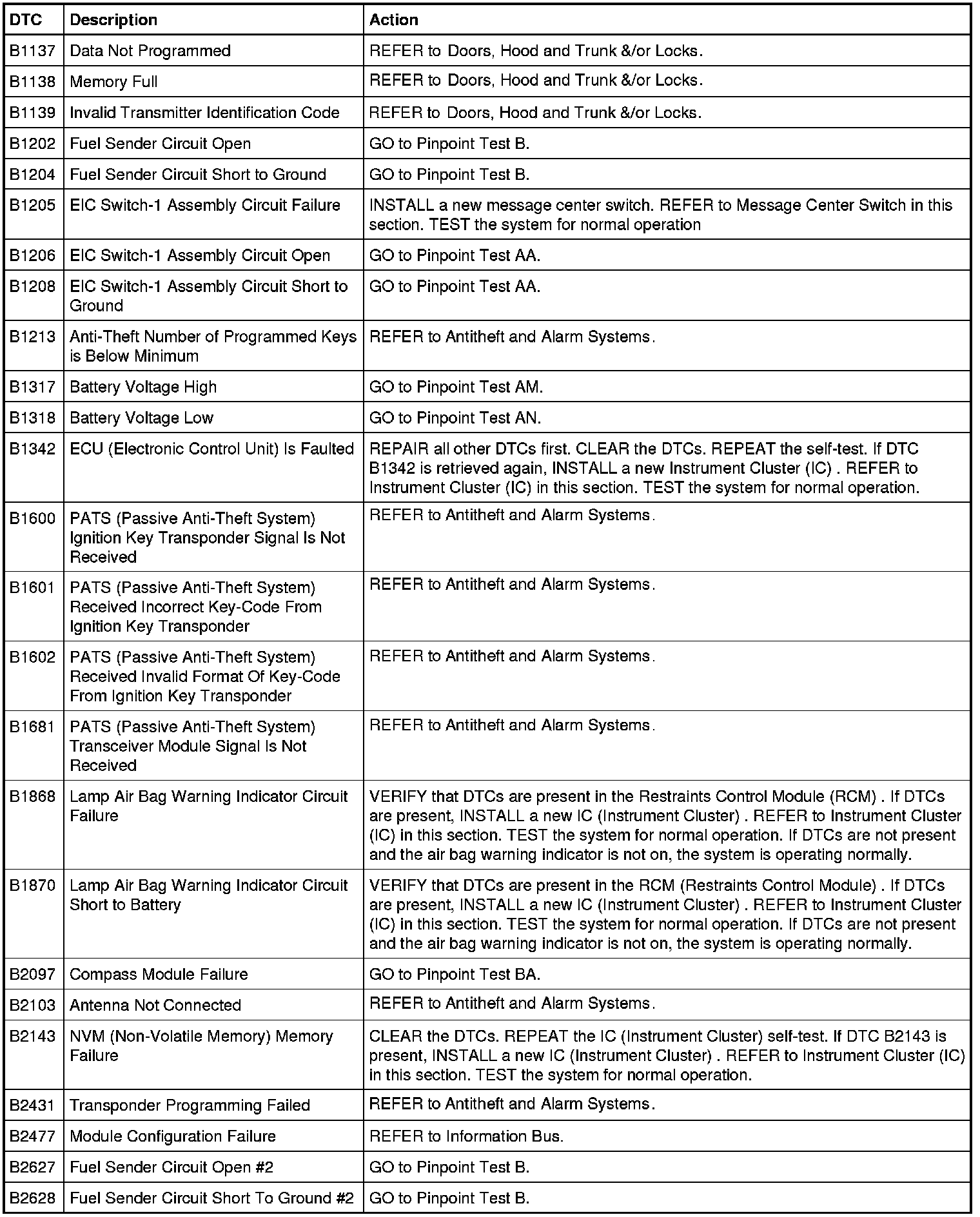

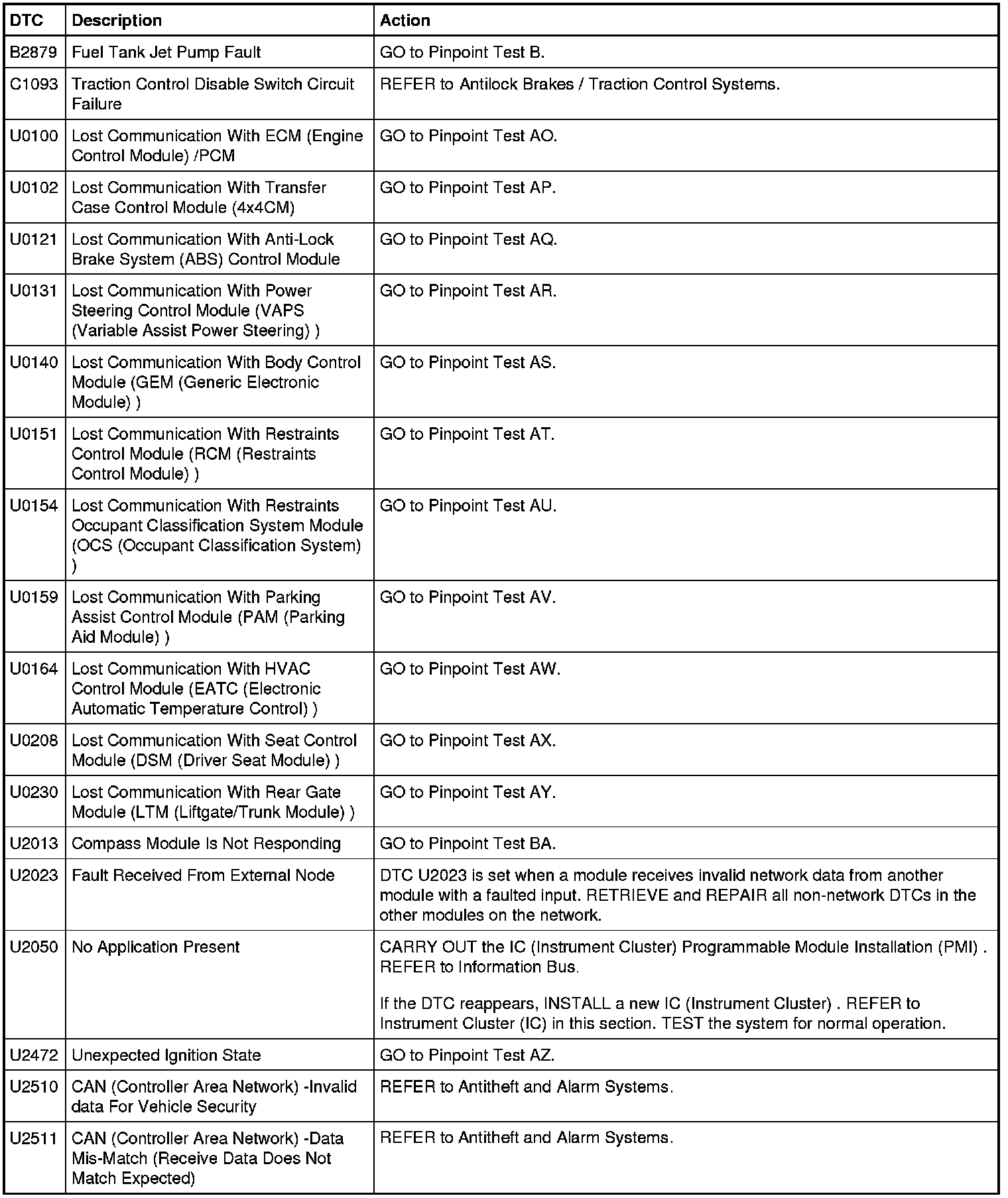

Instrument Cluster (IC) DTC Chart
Smart Junction Box (SJB) DTC Chart

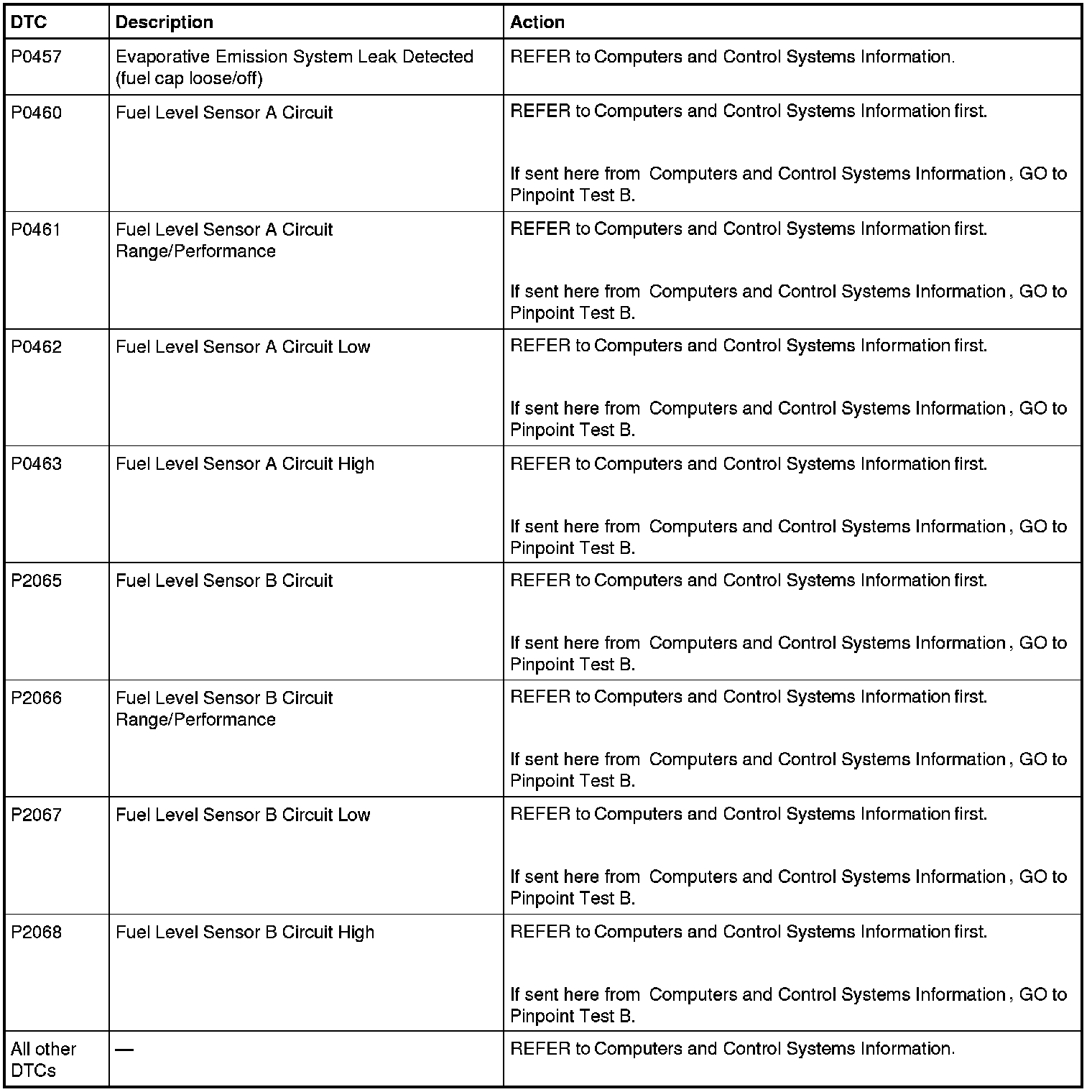

PCM DTC Chart
