Exterior Lighting




Diagnostic Trouble Code (DTC) Chart

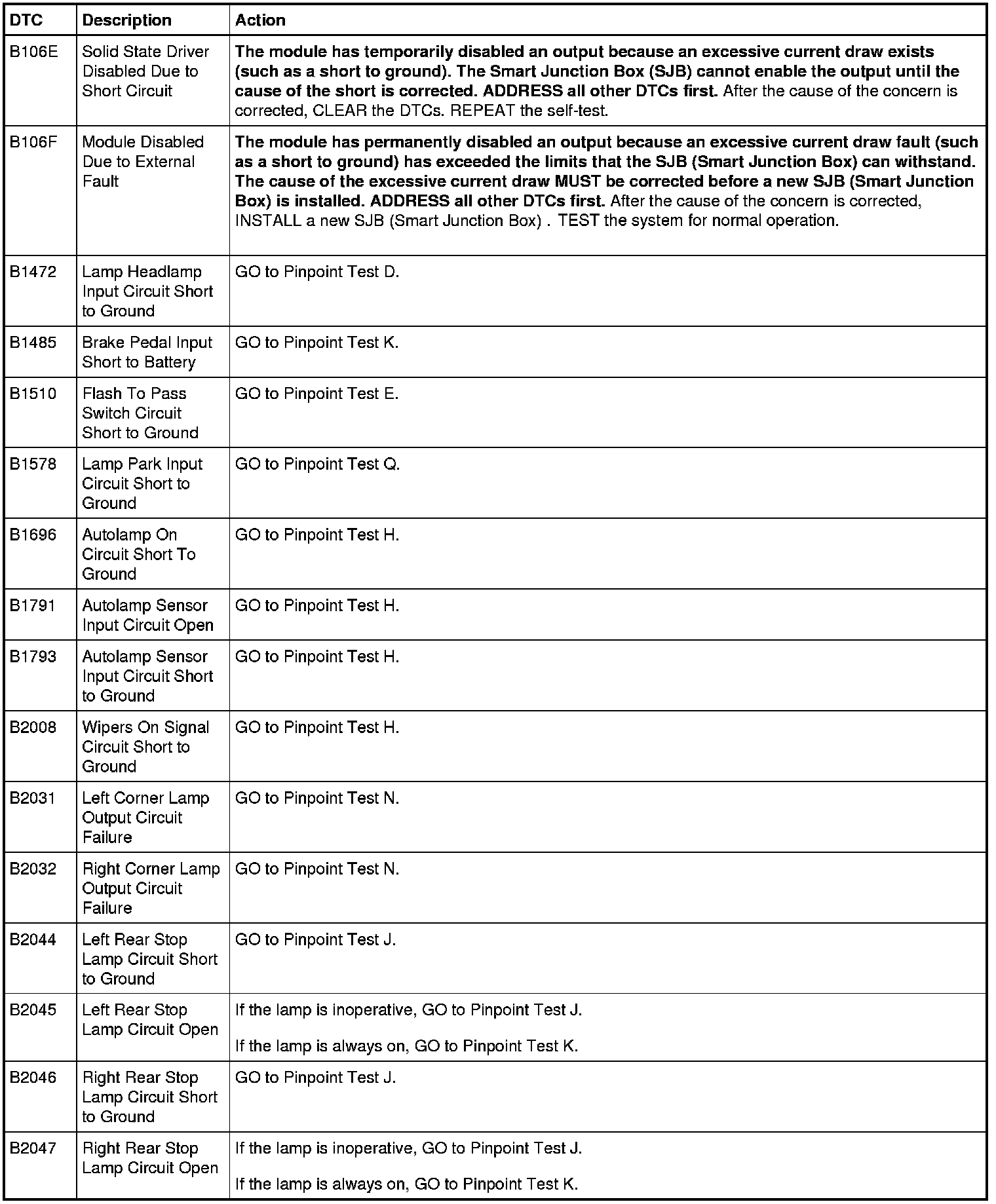

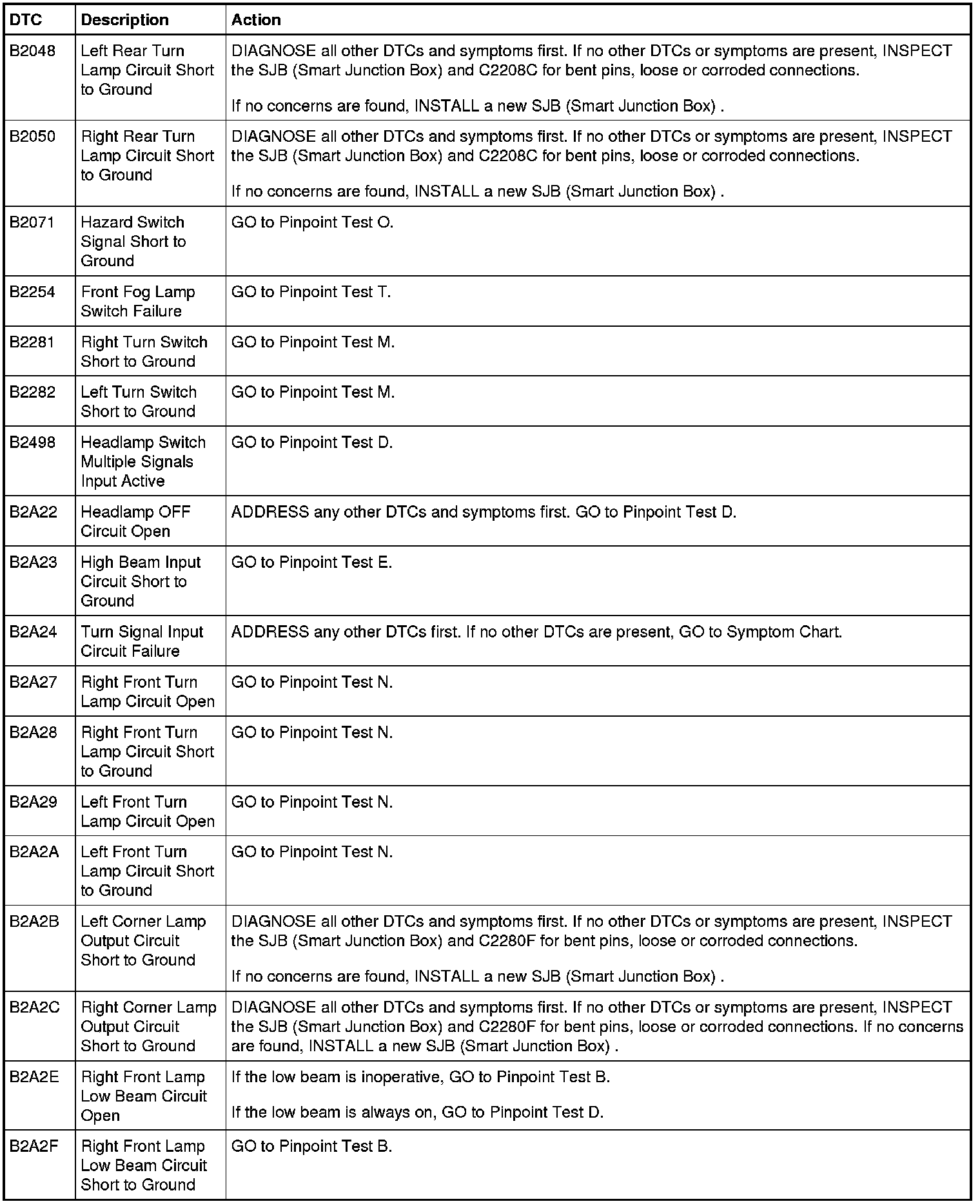

Smart Junction Box (SJB) DTC Chart














PCM DTC Chart
