Instrument Panel Cluster (IPC): Notes

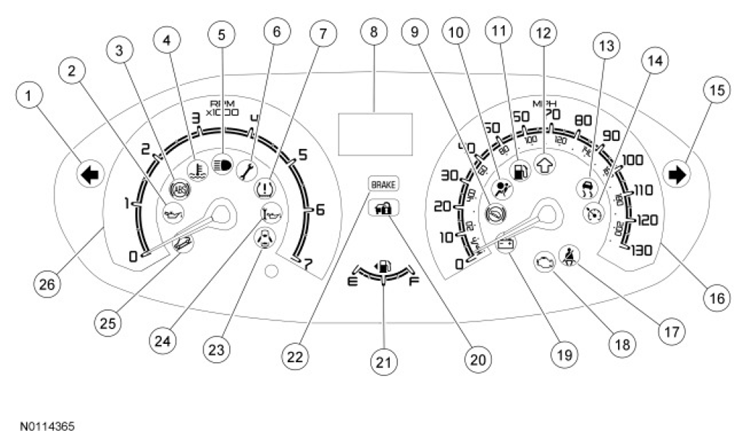

| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH turn indicator |
| 2 | - | Low engine oil pressure warning indicator |
| 3 | - | ABS warning indicator |
| 4 | - | Engine over-temperature warning indicator |
| 5 | - | High beam indicator |
| 6 | - | Powertrain malfunction (wrench) warning indicator |
| 7 | - | Tire Pressure Monitoring System (TPMS) warning indicator (Note that the TPMS warning indicator is the only indication on this vehicle. There are no additional warnings for low tire pressure.) |
| 8 | - | Odometer display area |
| 9 | - | Hill start assist indicator |
| 10 | - | Air bag warning indicator |
| 11 | - | Low fuel warning indicator |
| 12 | - | Upshift indicator |
| 13 | - | Traction control indicator |
| 14 | - | Cruise control indicator |
| 15 | - | RH turn indicator |
| 16 | - | Speedometer |
| 17 | - | Safety belt warning indicator |
| 18 | - | Malfunction Indicator Lamp (MIL) |
| 19 | - | Charging system warning indicator |
| 20 | - | Anti-theft indicator |
| 21 | - | Fuel gauge |
| 22 | - | Brake warning indicator |
| 23 | - | Door ajar warning indicator |
| 24 | - | Oil change minder |
| 25 | - | Overdrive off |
| 26 | - | Tachometer |
The Instrument Panel Cluster (IPC) contains gauges, informational indicators, warning indicators and an integrated circuit display designed to provide the driver with system status and to alert the driver when certain conditions exist in the vehicle.
The integrated circuit display, located in the top center of the IPC, uses a 3-line Liquid Crystal Display (LCD) of basic informational items such as the odometer, trip odometer, gear position display, Distance To Empty (DTE), average fuel economy and outside air temperature.
