Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

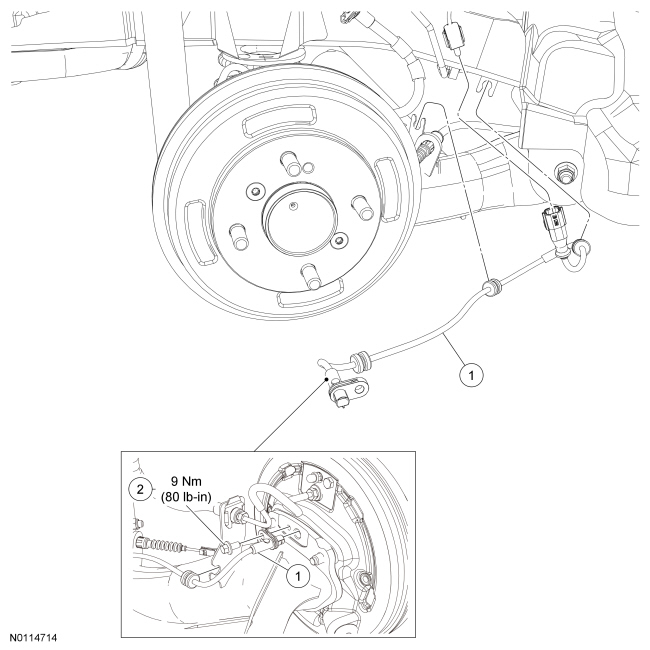

NOTE: RH shown, LH similar. Wheel and tire removed for clarity.









Removal and Installation

1. Refer to exploded view(s) and any Warnings, Notices, Notes, Materials, Specifications and Special Tools. Items in the exploded views may not be listed in order of removal.
