Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

NOTE: LH shown, RH similar.









Removal and Installation

1. Remove the wheel and tire. For additional information, refer to Wheels and Tires Removal and Replacement.

2. Position the rear portion of the splash shield aside.

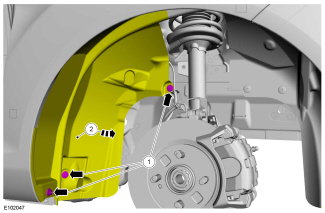

1. Remove the 3 pushpin retainers.

2. Position the splash shield aside.





3. Disconnect the wheel speed sensor electrical connector.

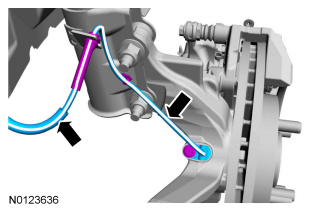

4. Detach the wheel speed sensor from the body and wheel knuckle.

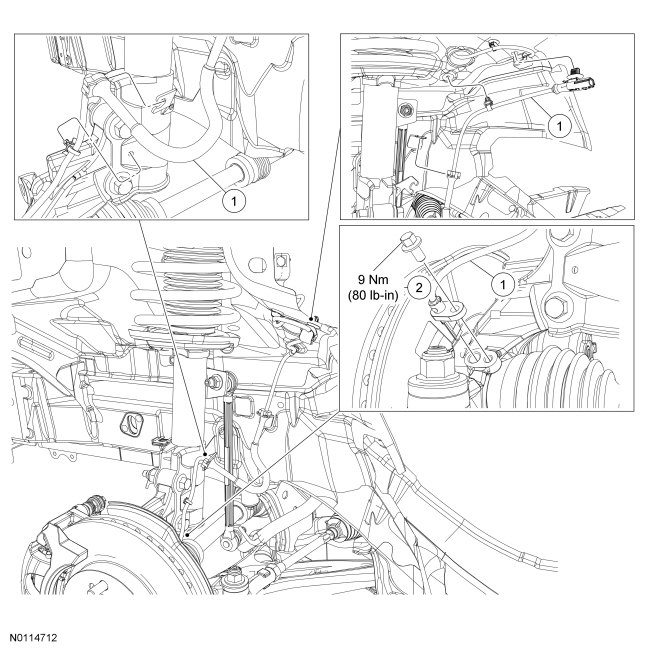

5. Remove the wheel speed sensor bolt.
- To install, tighten to 9 Nm (80 lb-in).

6. Remove the wheel speed sensor.

7. NOTICE: The white stripe on the wheel speed sensor harness is used for orientation purposes. Correct routing of the wheel speed sensor and harness is essential to prevent contact damage to the harness.

To install, reverse the removal procedure.
