Headlamp Switch: Service and Repair

Headlamp Switch









Removal and Installation

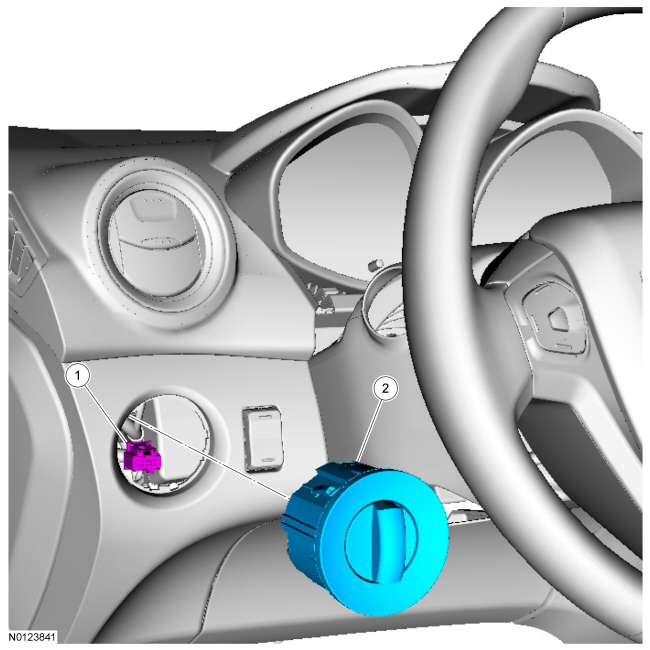

1. Using a suitable non-marring tool, work around the outer edge of the switch to release the clips and pull the switch out through the front of the finish panel.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
