Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 92 (Parking, Rear and License Lamps)

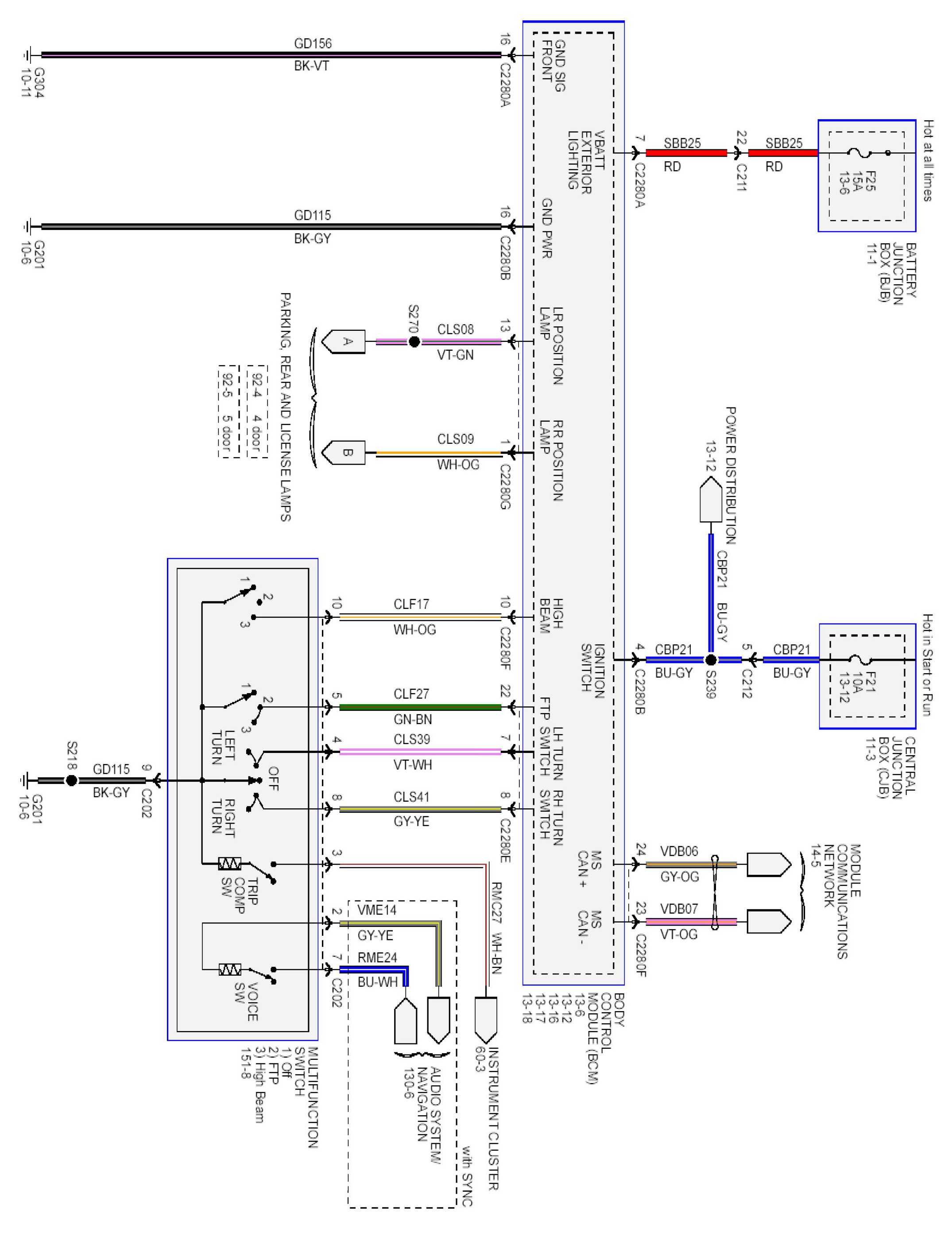

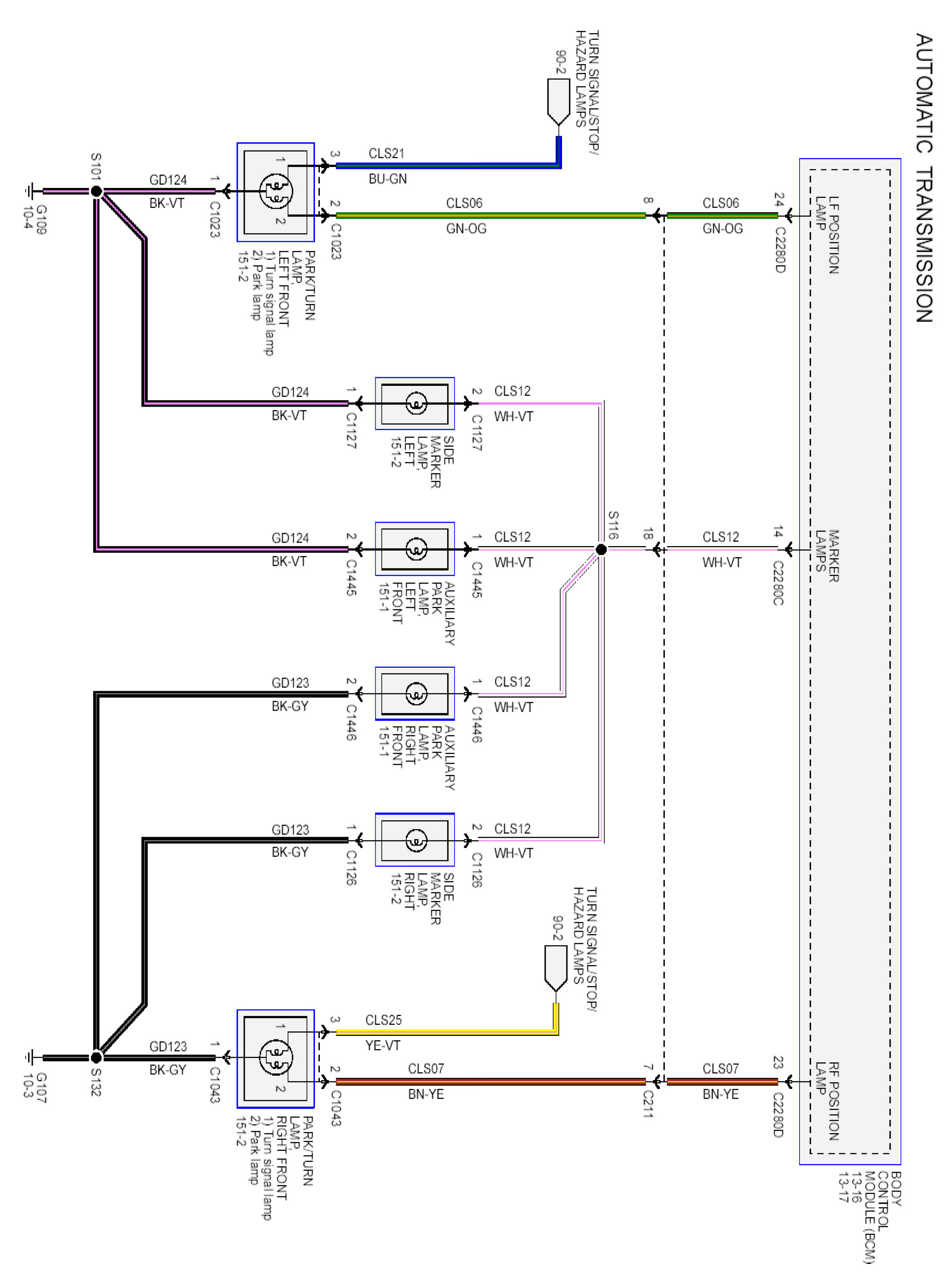

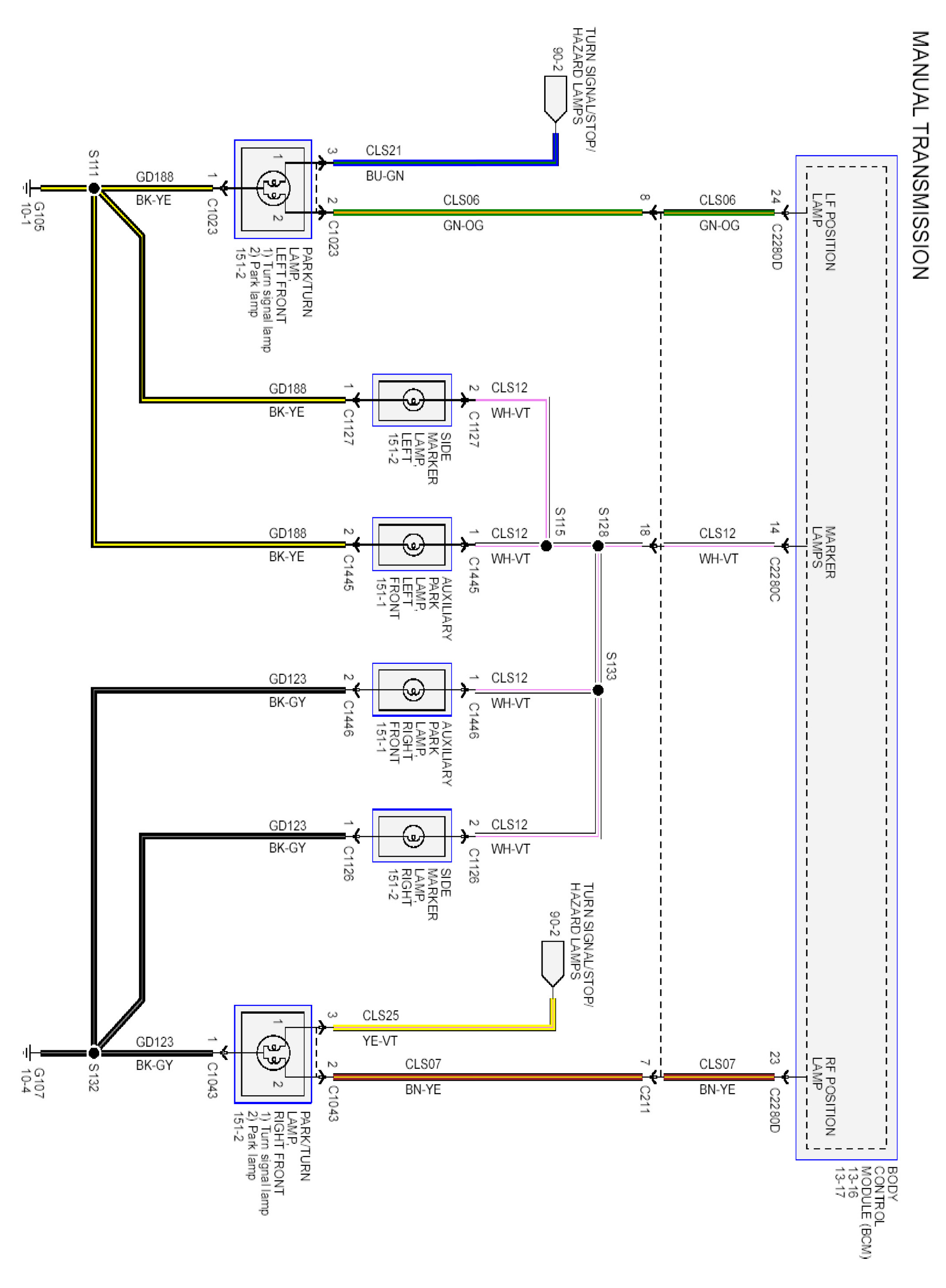

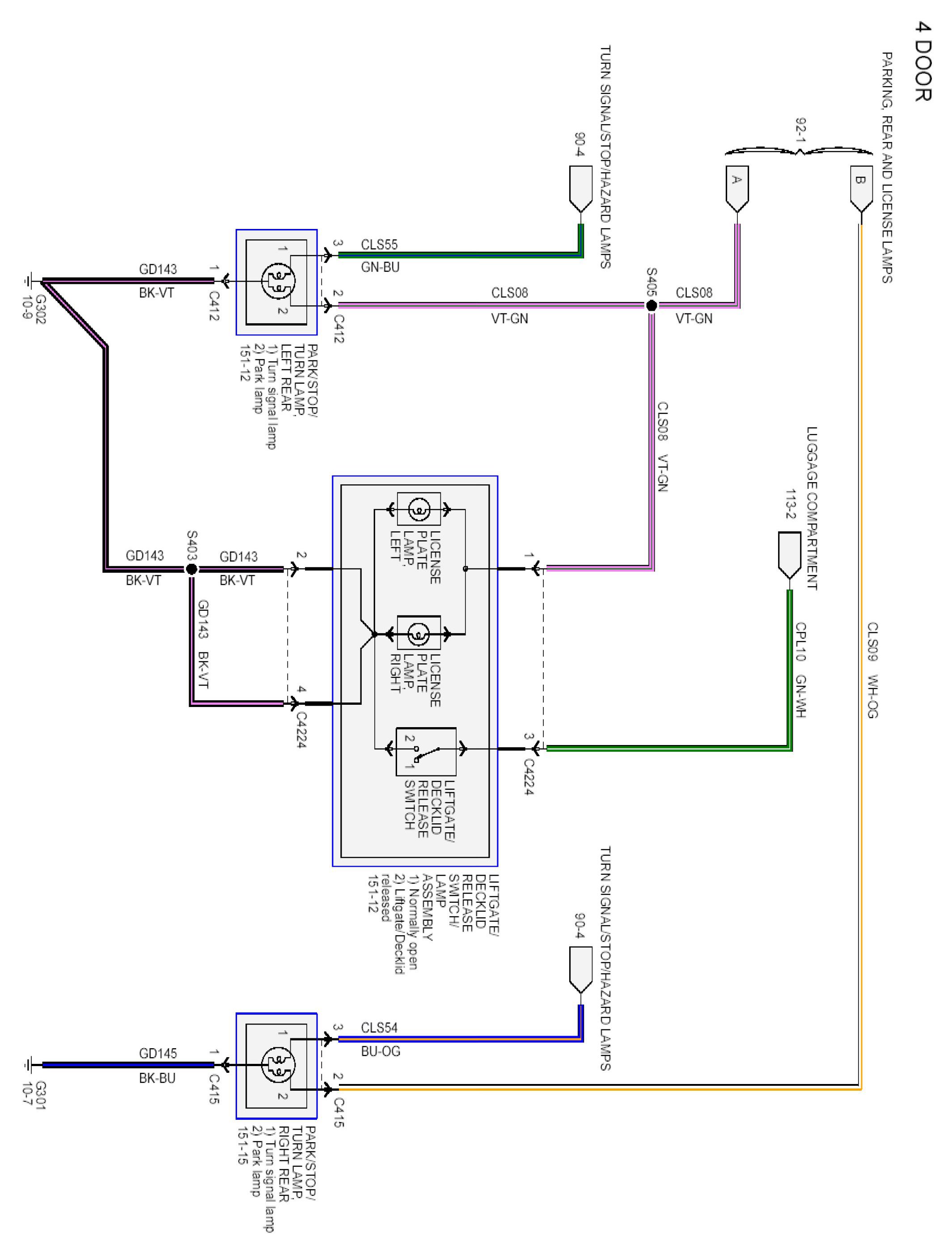

Diagram Set 92 (Parking, Rear and License Lamps)
