Seat Belt Tensioner
>>

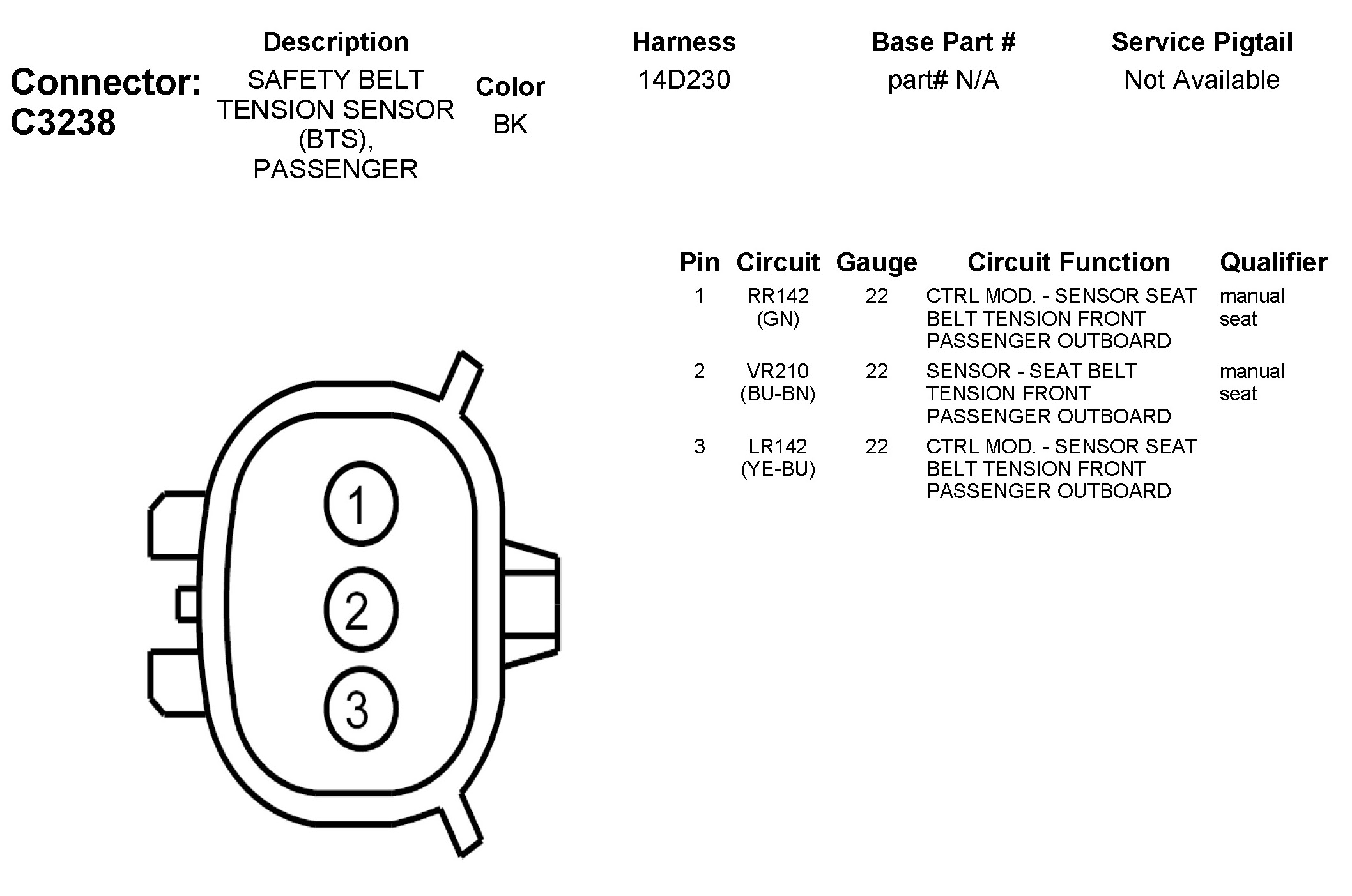

C3238 Safety Belt Tension Sensor (BTS), Passenger
C3238 Safety Belt Tension Sensor (BTS), Passenger
