Interior Trim - Exploded View




Interior Trim - Exploded View

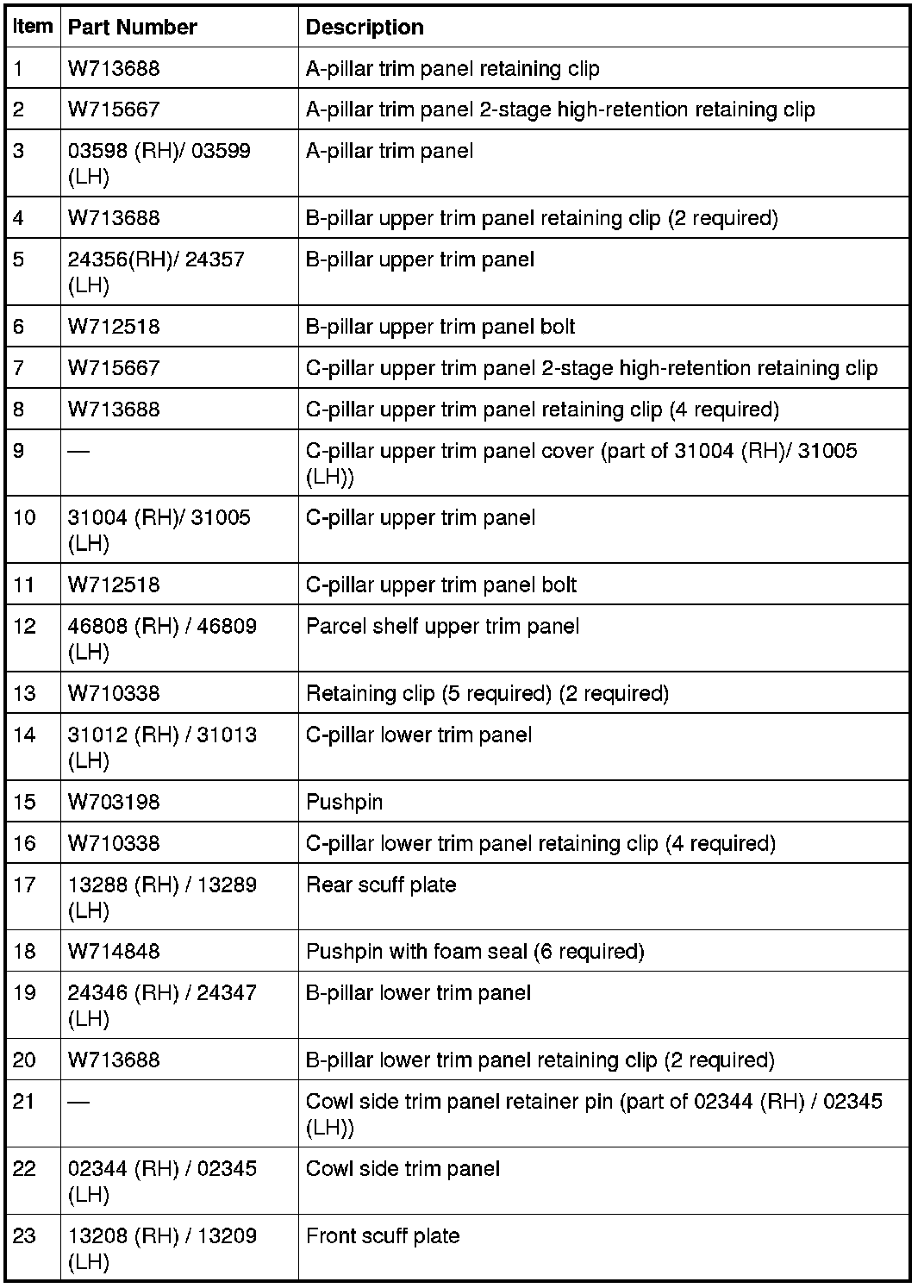

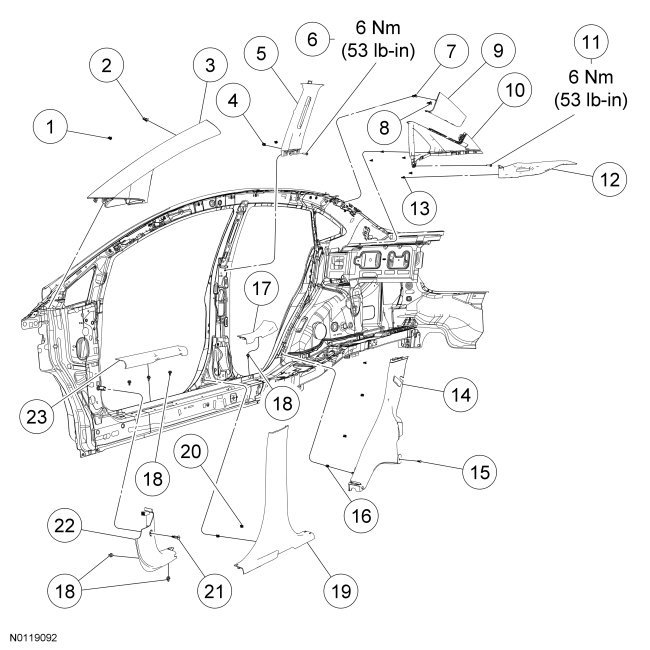

4 Door Sedan

NOTE: RH side shown, LH side similar.

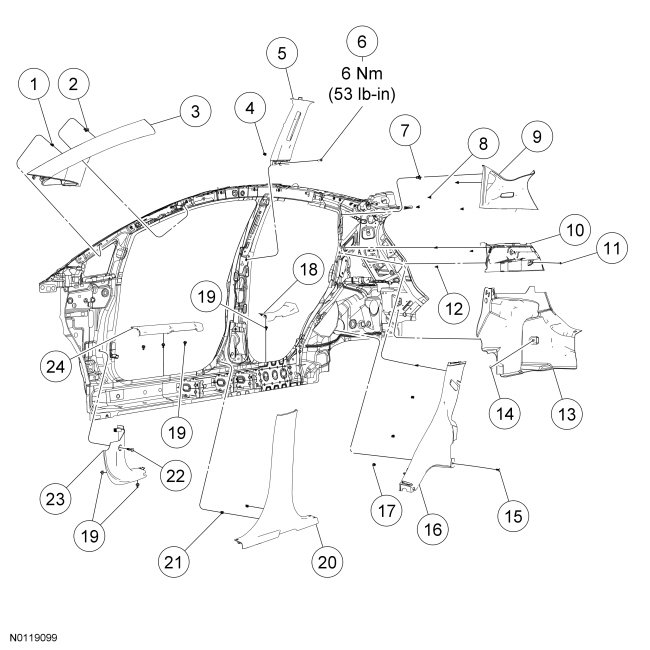

5 Door Hatchback

NOTE: LH side shown, RH side similar.
