Steering Column

Steering Column Switches

DTC Charts

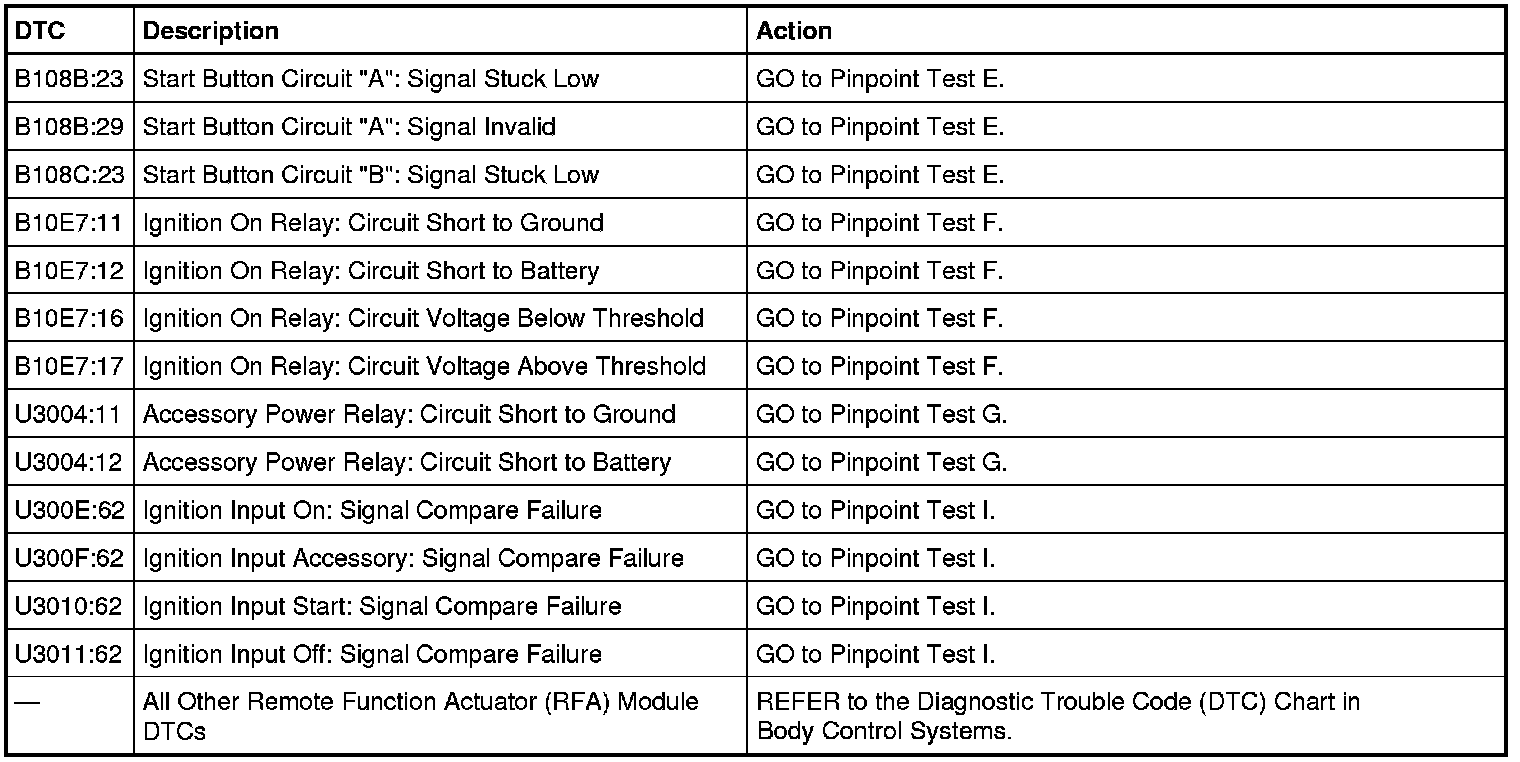

Remote Function Actuator (RFA) Module DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens or shorts to ground. CMDTCs (Continuous Memory Diagnostic Trouble Codes) have an additional 2-character DTC status code suffix to assist in determining DTC history.
