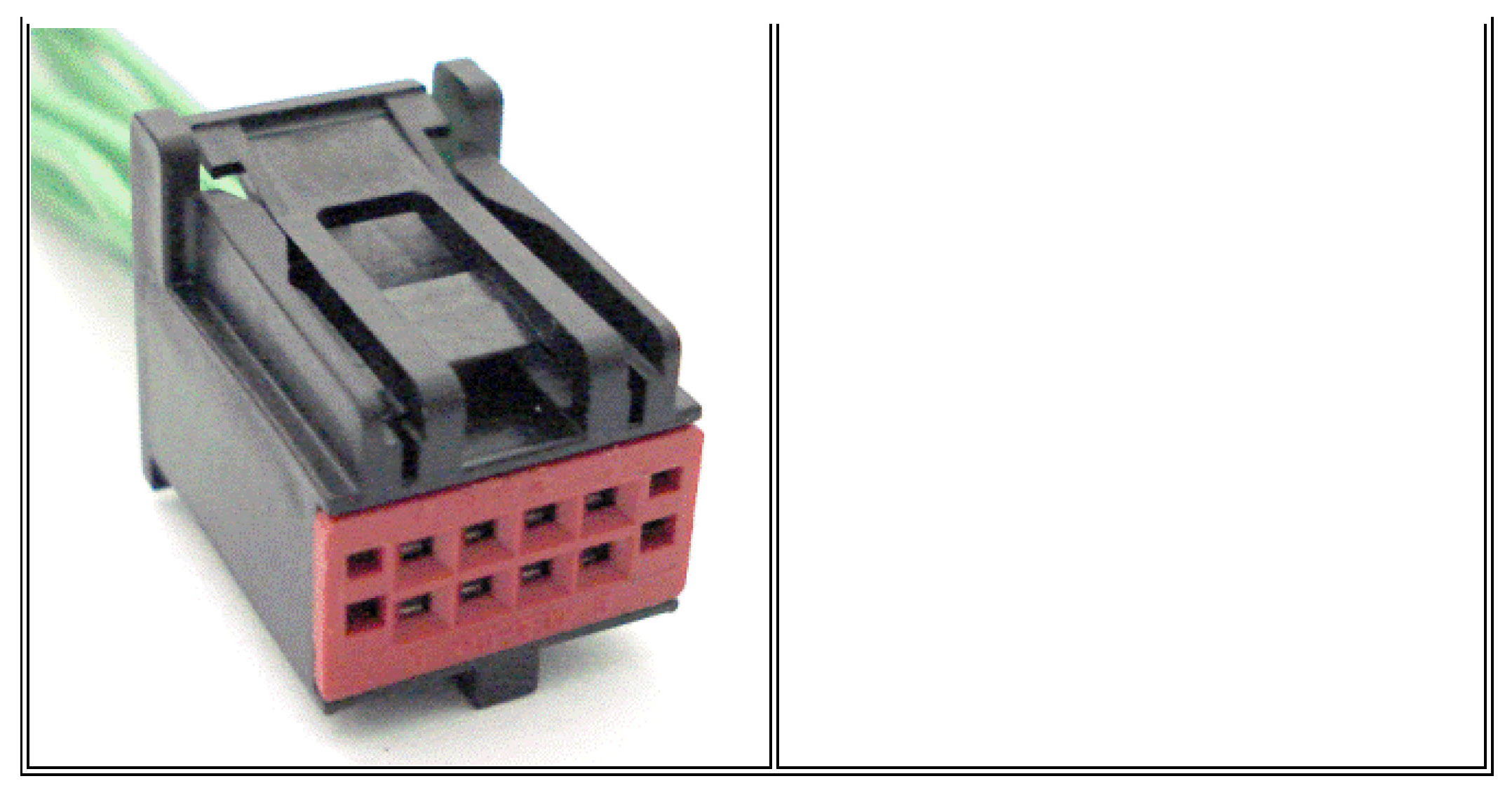

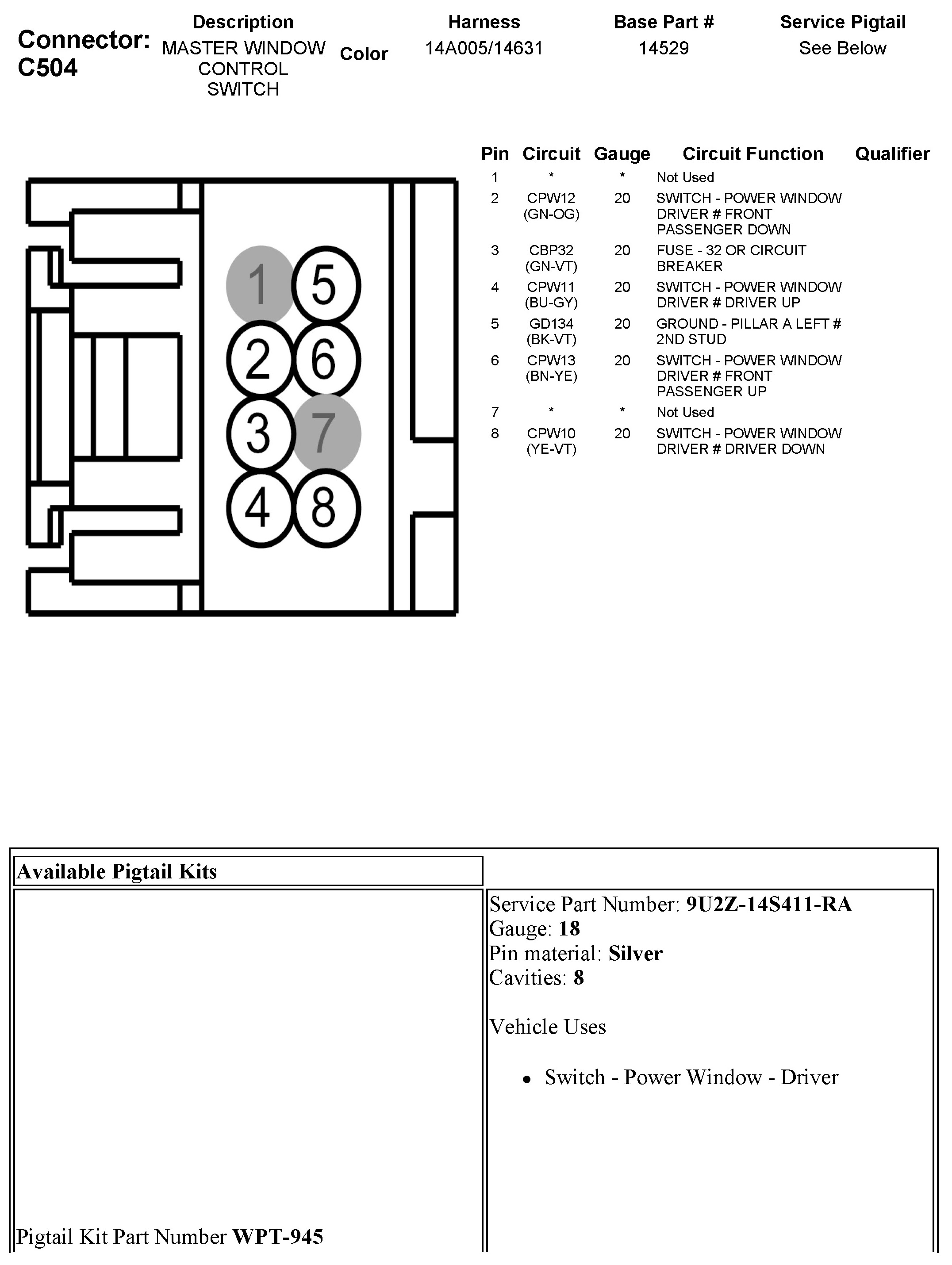

Home >> Ford >> 2012 >> F 150 2WD V8-6.2L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> C504 Master Window Control Switch
