Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor









Removal

1. Remove the clockspring.

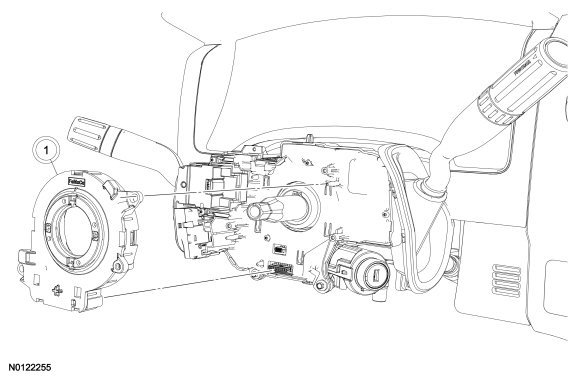

2. Remove the steering wheel rotation sensor.

Installation

1. Align the arrow on the inner ring of the sensor to the notch on the sensor body.





2. Position the sensor on the Steering Column Control Module (SCCM).

3. Install the clockspring.
