Door Switch: Service and Repair

Door Ajar Switch - Rear, SuperCab









Removal and Installation

1. Remove the lower rear door latch. For additional information, refer to Rear Door Latch- Lower, SuperCab Rear Door Latch - Lower, SuperCab.

2. Insert a screwdriver or suitable tool into the opening on the door latch and push up on the tab.

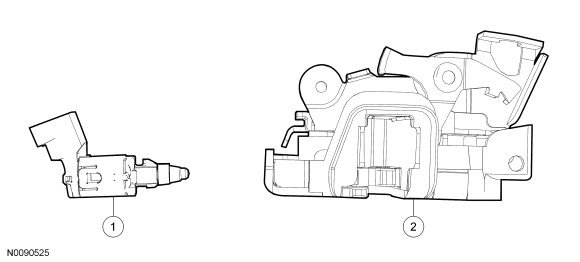

3. Rotate the door ajar switch and remove from the door latch.

4. To install, reverse the removal procedure.
