Crankshaft Rear Seal

Crankshaft Rear Seal









Removal

1. Remove the flexplate. For additional information, refer to Flexplate Flexplate.

2. Remove the engine rear cover plate.

3. NOTE: Inspect the ignition pulse ring for damage. If the ignition pulse ring has been dropped or has any visual damage, it must be discarded.
Remove the crankshaft ignition pulse ring.

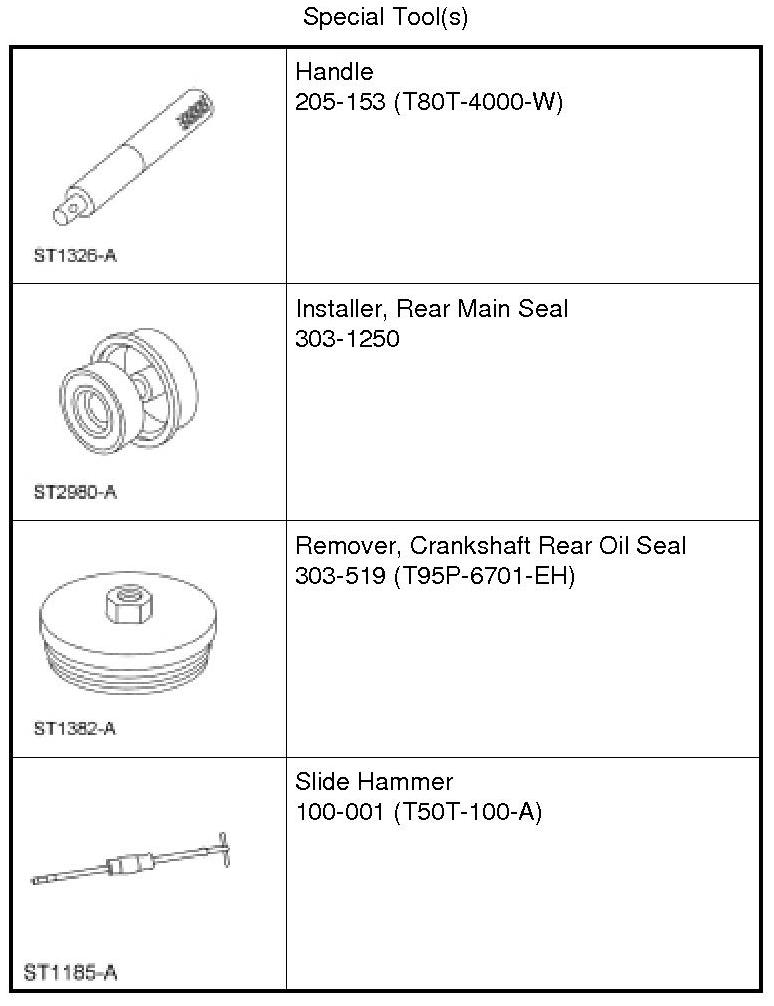

4. Using the Slide Hammer and the Crankshaft Rear Oil Seal Remover, remove and discard the crankshaft rear seal.





Installation

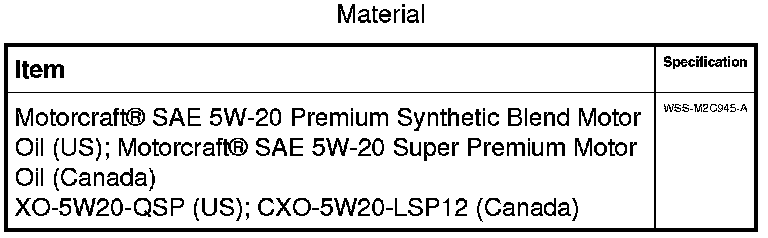

1. NOTE: Lubricate the crankshaft rear seal with clean engine oil prior to installation.
Using the Rear Main Seal Installer and Handle, install a new crankshaft rear seal.






2. NOTE: Inspect the ignition pulse ring for damage. If the ignition pulse ring has been dropped or has any visual damage, it must be discarded.
With the inset hole on the crankshaft ignition pulse ring aligned with the inset hole on the crankshaft flange, install the crankshaft ignition pulse ring.






3. Install the engine rear cover plate.

4. Install the flexplate. For additional information, refer to Flexplate Flexplate.
