Home >> Ford >> 2012 >> F 150 2WD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 92 (Parking, Rear and License Lamps)

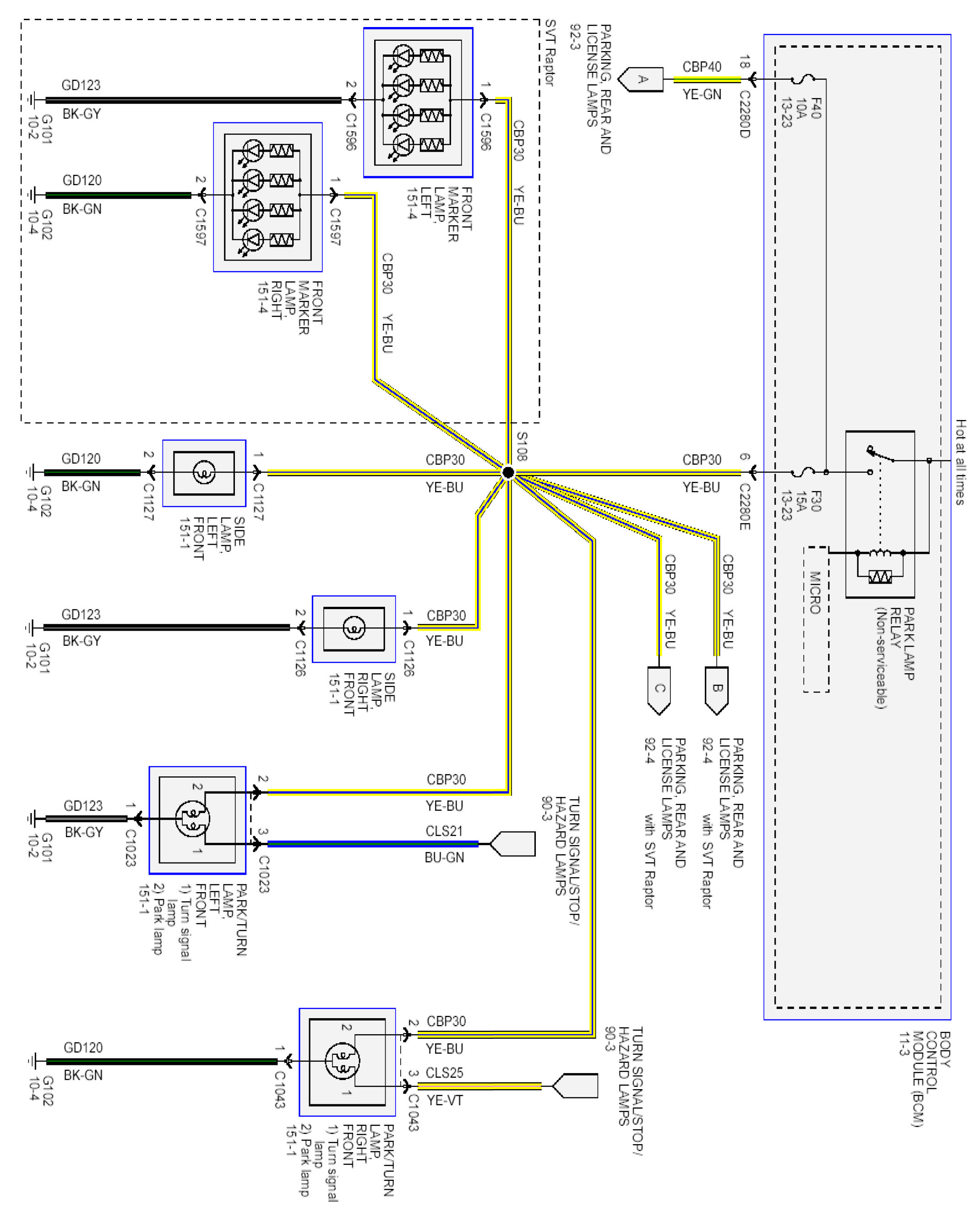

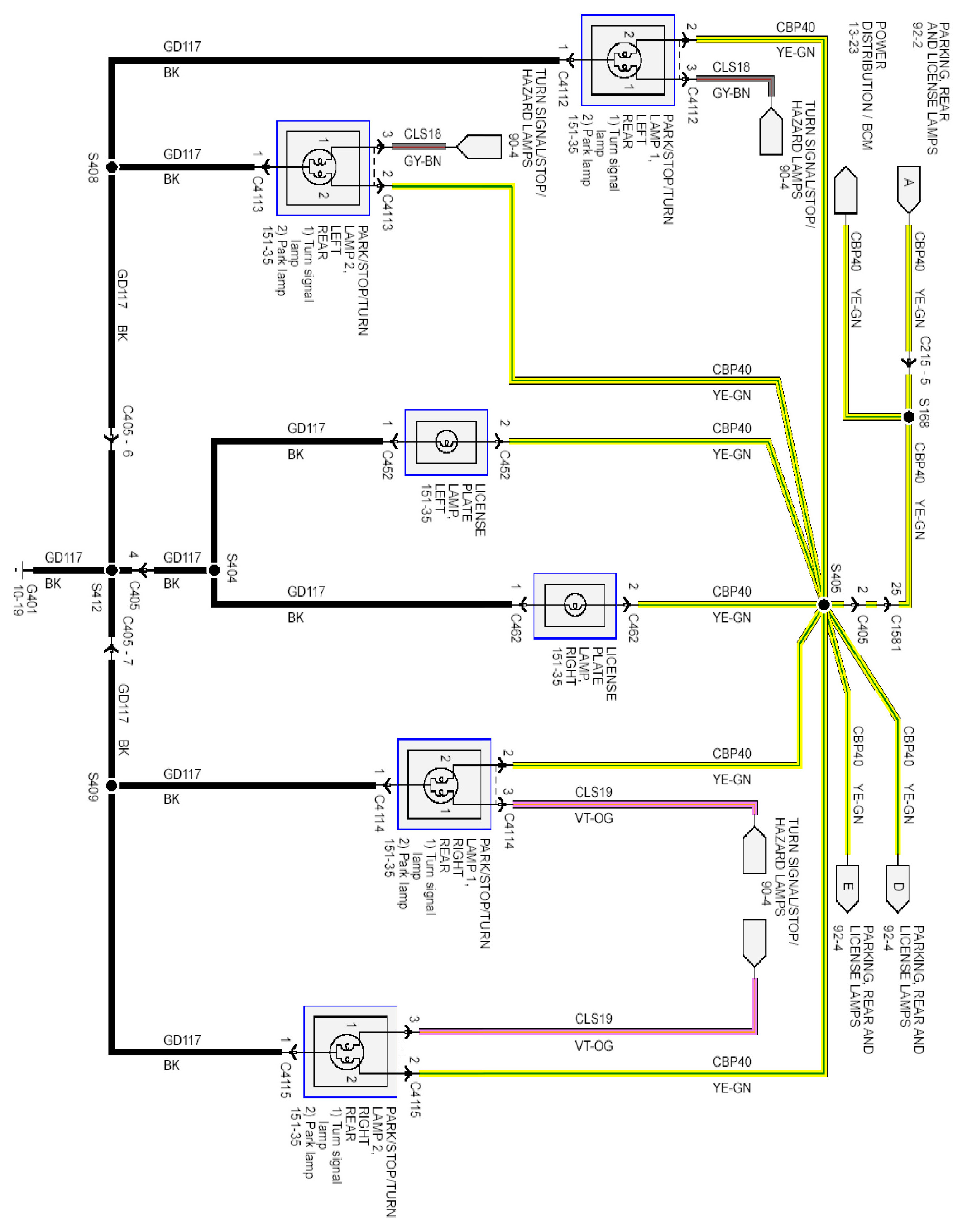

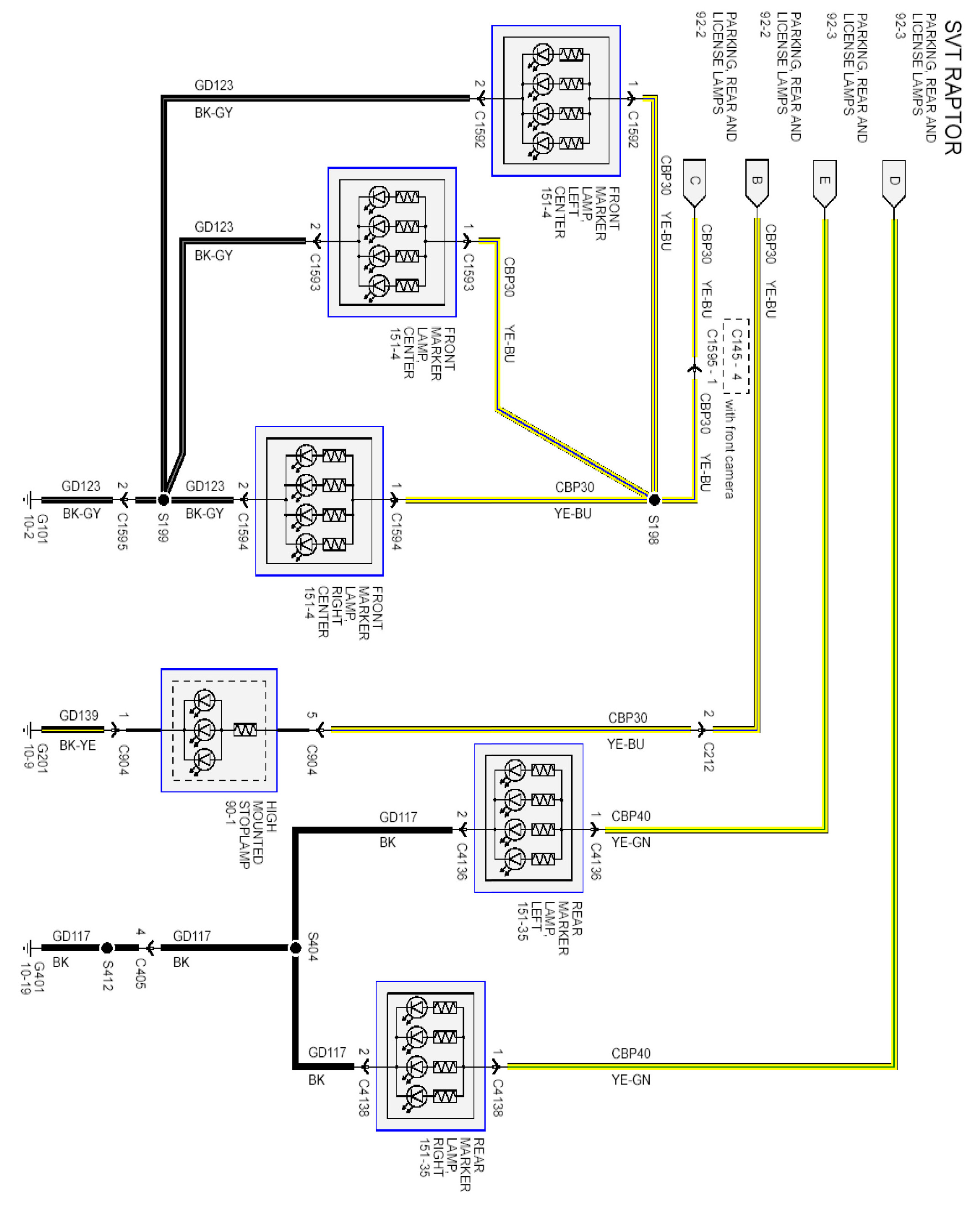

Diagram Set 92 (Parking, Rear and License Lamps)
