Home >> Ford >> 2012 >> F 150 2WD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Exhaust Bypass Valve, Turbocharger >> C1585 Turbocharger Bypass Valve 2 (TCBY2)

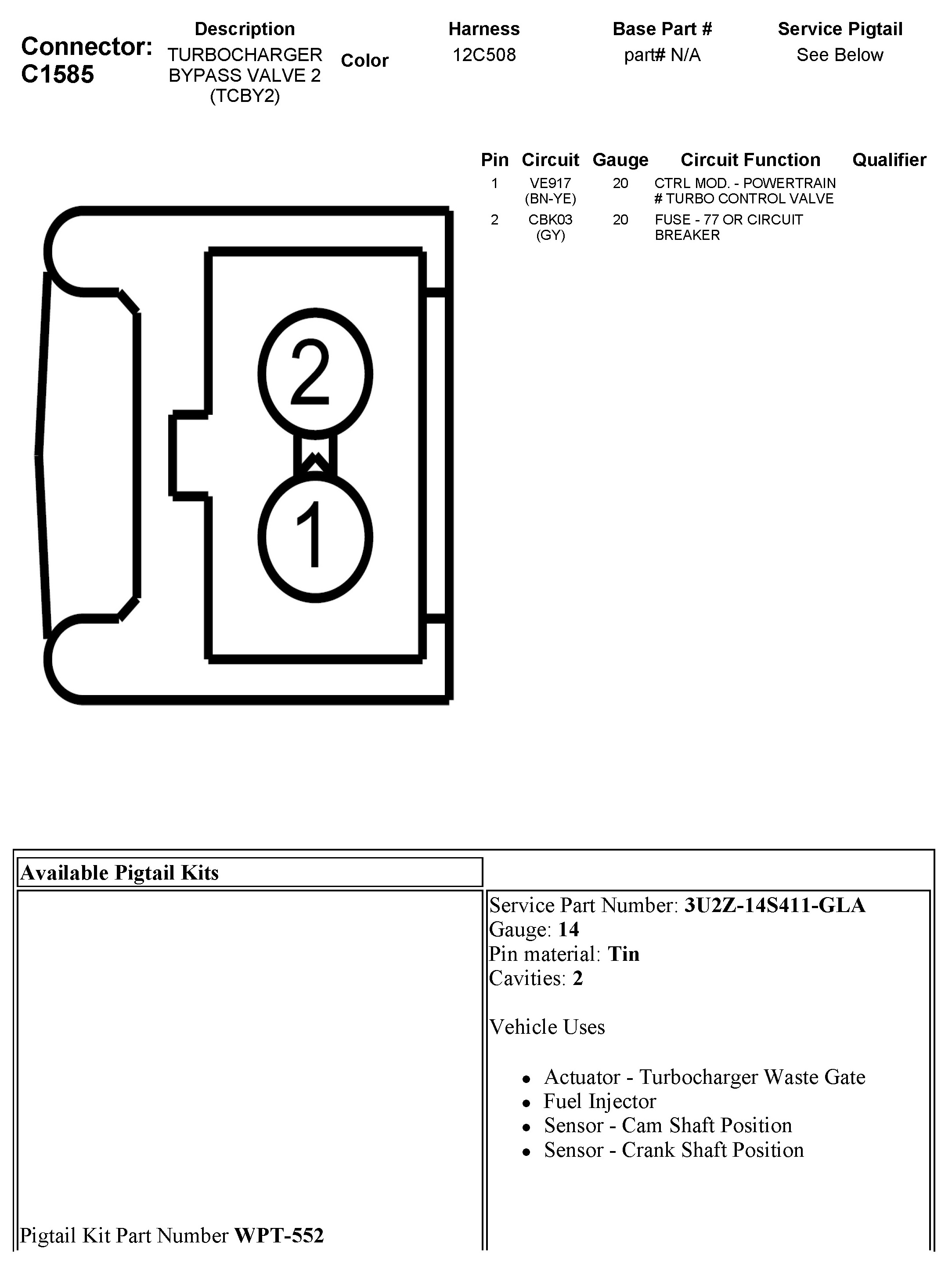

C1585 Turbocharger Bypass Valve 2 (TCBY2)
