Hood Latch Release Handle - Secondary

Hood Latch Release Handle - Secondary

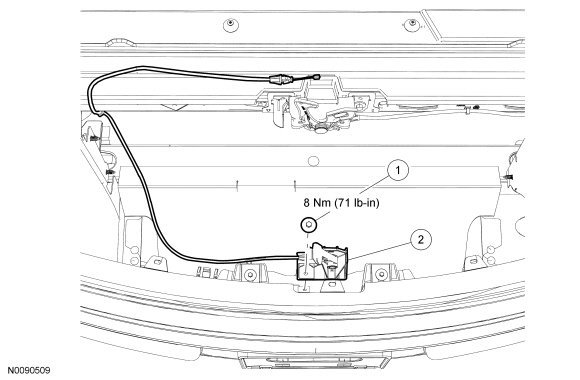

Removal and Installation

1. Disconnect the secondary hood latch release cable from the hood latch.

2. Disconnect the secondary hood latch release cable from the guide clips.

3. Remove the secondary hood latch release handle bolt.
- To install, tighten to 8 Nm (71 lb-in).


4. Remove the secondary hood latch release.

5. To install, reverse the removal procedure.
