Transfer Shaft and Gear: Assembly

  1. G08412996Courtesy of FORD MOTOR CO.

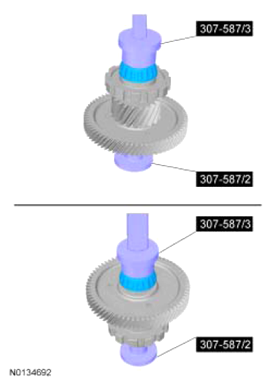

  2. Special Tool(s): Differential Bearing Installer and Guide 307-587 (307-587/2 and 307-587/3)

    General Equipment: Shop Press

    G08412997Courtesy of FORD MOTOR CO.
  3. Select a new transfer shaft shim. Refer to TORQUE CONVERTER HOUSING .
