Component Location: Notes

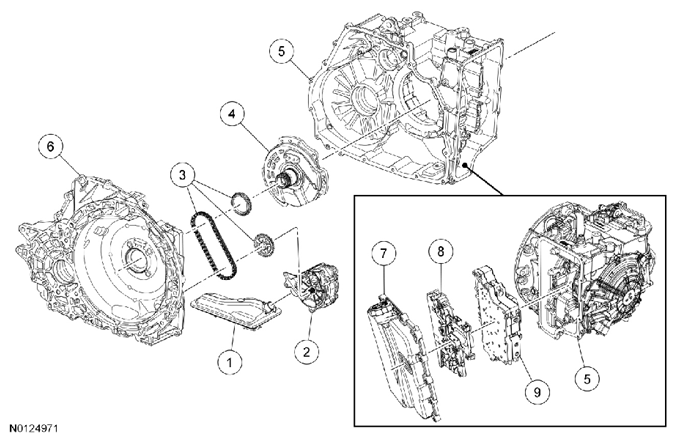

G07429755Courtesy of FORD MOTOR CO.
Item Description
1 Transmission fluid filter assembly
2 Pump assembly
3 Chain and sprocket assembly
4 Stator support assembly
5 Transmission case
6 Torque converter housing
7 Main control cover assembly
8 Solenoid body
9 Main control valve body
