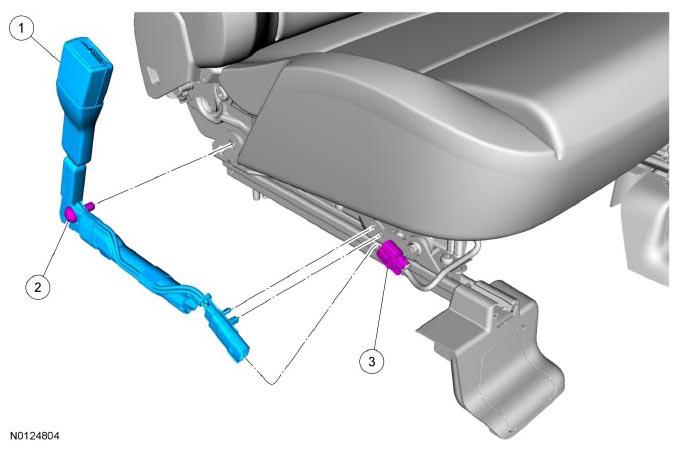

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 61202 RH /61203 LH | Safety belt buckle and pretensioner | - | - | - |
| 2 | - | Safety belt buckle and pretensioner bolt (part of 61202 RH /61203 LH) | - | - | 40 Nm (30 lb-ft) |
| 3 | - | Safety belt buckle and pretensioner electrical connector (part of 14D230 RH /14D231 LH) | - | - | - |
