Exploded View

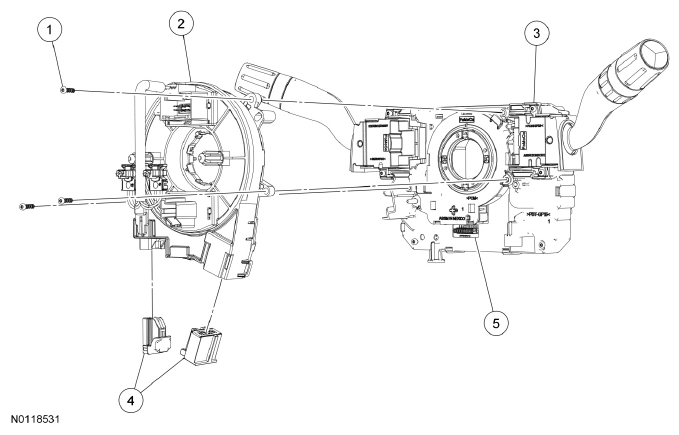

Fig 1: Exploded View Of Clockspring
G07428204Courtesy of FORD MOTOR CO.
Item Service Part Number Description
1 - Clockspring screws (3 required)
2 14A664 Clockspring
3 3F791 SCCM
4 - Clockspring electrical connector(s) (part of 14401)
5 - SCCM electrical connector (part of 3F791)
