Pinpoint Test

WARNING: Do not handle, move or change the original horizontal mounting position of the RCM while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy® and cause serious personal injury or death.

NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.

NOTE: Only disconnect or reconnect SRS components when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.

NOTE: Install new components only when directed to do so in the pinpoint test.

NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford Catalog Advantage or equivalent to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

RETRIEVE RCM DTCs
1. Ignition ON.
2. Using a scan tool, perform RCM self-test to retrieve DTCs .
Was DTC B11D8:12 or B11D8:14 retrieved on-demand during self-test?
1. Yes:
  - This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during the self-test.
  - For DTC B11D8:14, GO to 2 .
  - For DTC B11D8:12, GO to 4.
2. No
  - This is an intermittent fault when present as a CMDTC only. GO to 7.

CHECK THE EVENT NOTIFICATION SIGNAL CIRCUIT FOR AN OPEN

Ignition OFF.
Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
Disconnect RCM C310A and C310B.

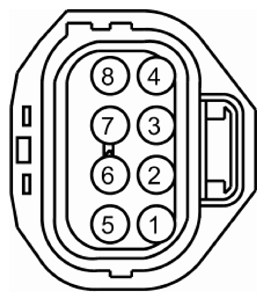

Disconnect Fuel Pump Control Module C3239.

Measure:

RCM			Fuel Pump Control Module

C310A			C3239
Pin	Circuit	Measurement	Pin	Circuit
19	CR167 (YE/VT)		6	CR167 (YE/VT)

Is the resistance less than 3 ohms?

Yes:
- GO to 3 .
No
- REPAIR the circuit.
  Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.

  GO to 8.

CHECK THE EVENT NOTIFICATION SIGNAL CIRCUIT FOR A SHORT TO GROUND

Measure:

Fuel Pump Control Module			Ground

C3239			Ground
Pin	Circuit	Measurement	Pin	Circuit
6	CR167 (YE/VT)		-	Ground

Is the resistance greater than 10, 000 ohms?

Yes:
- INSTALL a new fuel pump control module. REFER to the appropriate FUEL PUMP CONTROL MODULE - 3.5L-TI-VCT, or FUEL PUMP CONTROL MODULE - 2.0L-GTDI .
- CONNECT all RCM connectors. REPOWER the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
- CLEAR the RCM DTCs and REPEAT the self-test.
- If DTC B11D8:14 returns, GO to 6.
- If no RCM DTCs are retrieved, GO to 8.
- If RCM DTCs other than B11D8:14 are retrieved, REFER to DTC Chart: Restraint Control Module (RCM) to diagnose those DTCs .
No
- REPAIR the circuit.
  Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.

  GO to 8.

CHECK THE EVENT NOTIFICATION SIGNAL CIRCUIT DTC FOR A FAULT STATUS CHANGE
NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.
1. Ignition OFF.
  WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
2. Disconnect Fuel Pump Control Module C3239.
3. Ignition ON.
4. Using a scan tool, perform RCM self-test to retrieve DTCs .
Was DTC B11D8:12 retrieved on-demand during self-test?
1. Yes:
  - GO to 5 .
2. No
  - INSTALL a new fuel pump control module. REFER to the appropriate FUEL PUMP CONTROL MODULE - 3.5L-TI-VCT, or FUEL PUMP CONTROL MODULE - 2.0L-GTDI .
  - GO to 8.

CHECK THE EVENT NOTIFICATION SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

Ignition OFF.
Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
Disconnect RCM C310A and C310B.
Repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
Ignition ON.

Measure:

Fuel Pump Control Module			Ground

C3239			Ground
Pin	Circuit	Measurement	Pin	Circuit
6	CR167 (YE/VT)		-	Ground

Is any voltage present?

Yes:
- REPAIR the circuit.
  Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.

  GO to 8.
No
- GO to 6 .

CONFIRM THE RCM FAULT
NOTE: Make sure all SRS electrical connectors and the fuel pump control module electrical connector are connected before carrying out the self-test. If not, DTCs will be recorded.
1. Ignition OFF.
2. Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
3. Disconnect Fuel Pump Control Module C3239 (if not previously disconnected).
4. Disconnect RCM C310A and C310B (if not previously disconnected).
5. Prior to reconnecting any previously disconnected SRS component:
  - inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
  - inspect wire harness for any damage, pinched, cut or pierced wires.
  - repair any concerns found.
    Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.
6. Connect RCM C310A and C310B.
7. Connect Fuel Pump Control Module C3239.
8. Repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
9. Ignition ON.
10. Using a scan tool, perform RCM self-test to retrieve DTCs .
Was the original DTC retrieved on-demand during self-test?
1. Yes:
  - CHECK OASIS for any applicable TSBs . If a TSB exists for this concern, discontinue this test and follow TSB instructions. If no TSBs address this concern, INSTALL a new RCM. REFER to Restraints Control Module (RCM) . GO to 8.
2. No
  - In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test . GO to 7 .
CHECK FOR AN INTERMITTENT FAULT
1. Ignition OFF.
  WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
2. Disconnect Fuel Pump Control Module C3239.
  - inspect connector(s) (including any inline connectors) for loose or spread terminals and loose or frayed wire connections at terminals.
  - inspect wire harness for any damage, pinched, cut or pierced wires.
  - repair any concerns found.
    Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.
3. Connect Fuel Pump Control Module C3239.
4. Ignition ON.
5. Using a scan tool, perform OCSM self-test to retrieve DTCs .
Was DTC B11D8:12 or B11D8:14 retrieved on-demand during self-test?
1. Yes:
  - The fault condition is now present. This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during the self-test.
  - For DTC B11D8:14, GO to 2.
  - For DTC B11D8:12, GO to 4.
2. No
  - CHECK for causes of the intermittent fault. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition frequently. ACTIVATE other systems in the same wire harness. Do not install any new SRS components at this time. Only install SRS components when directed to do so in the pinpoint test. REPAIR any intermittent concerns found . GO to 8 .
CHECK FOR ADDITIONAL SRS DTCs
1. Ignition OFF.
  WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
2. Reconnect all SRS components (if previously disconnected).
3. If previously directed to depower the SRS, repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
4. Ignition ON.
5. Using a scan tool, perform Restraints self-test to retrieve DTCs .
  NOTE: When selecting Restraints from the Self Test menu, DTCs are retrieved from the RCM and OCSM.
Are any RCM and/or OCSM DTCs retrieved?
1. Yes:
  - Do not clear any DTCs until all DTCs have been resolved. REFER to DTC Chart: Restraint Control Module (RCM) or REFER to DTC Chart: Occupant Classification System Module (OCSM) for pinpoint test direction.
2. No
  - CLEAR all RCM and OCSM DTCs . PROVE OUT the SRS. The repair is complete. RETURN the vehicle to the customer.
