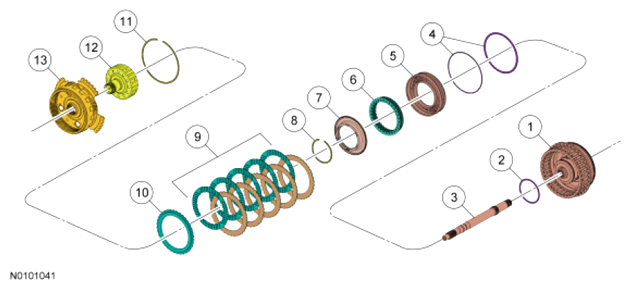

Overdrive (O/D) (4, 5, 6) Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7G384 | Direct/O/D clutch hub assembly |
| 2 | 7A548 | O/D clutch piston inner seal |
| 3 | 7F213 | Input shaft |
| 4 | 7A548 | O/D clutch piston outer seals |
| 5 | 7A262 | O/D clutch piston |
| 6 | 7F222 | O/D clutch piston return spring |
| 7 | 7H360 | O/D clutch balance piston |
| 8 | 7C122 | O/D clutch balance piston snap ring |
| 9 | 7B164 | O/D (4, 5, 6) clutch assembly |
| 10 | 7B066 | O/D clutch pressure plate |
| 11 | 7D483 | O/D clutch snap ring |
| 12 | 7H351 | O/D clutch hub |
| 13 | 7D491 | Rear planetary carrier |
