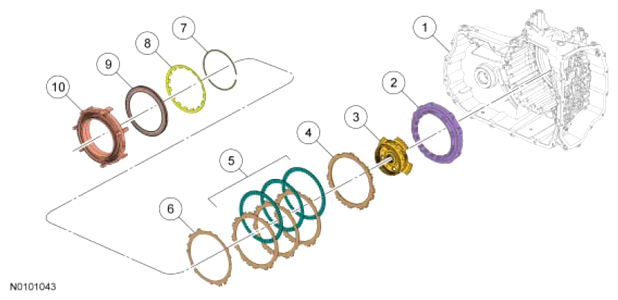

Low/Reverse Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7005 | Transmission case |
| 2 | 7A089 | Low OWC |
| 3 | 7D491 | Rear planetary carrier |
| 4 | 7B066 | Low/reverse clutch pressure plate |
| 5 | 7B164 | Low/reverse clutch |
| 6 | 7E085 | Low/reverse clutch wave spring |
| 7 | 7C122 | Low/reverse clutch piston return spring snap ring |
| 8 | 7B070 | Low/reverse clutch piston return spring |
| 9 | 7D402 | Low/reverse clutch piston |
| 10 | 7L328 | Center support |
