Crankshaft Pulley: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. Remove the RH fender splash shield. REFER to FENDER SPLASH SHIELD .
  2. Loosen the 4 retainers and remove the underbody shield.
    Fig 1: Locating Underbody Shield Retainers
    G08030560Courtesy of FORD MOTOR CO.
  3. Rotate the accessory drive belt tensioner counterclockwise and remove the accessory drive belt from the crankshaft pulley.

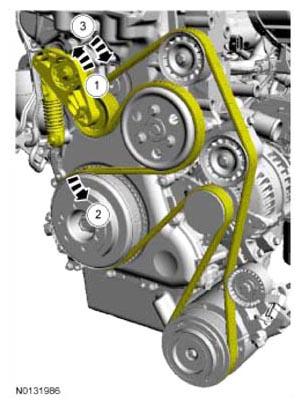

    Fig 2: Rotating Accessory Drive Belt Tensioner Counterclockwise
    G08028551Courtesy of FORD MOTOR CO.
  4. Remove the brake vacuum pump. REFER to BRAKE VACUUM PUMP .
  5. Remove the valve cover. REFER to Valve Cover .
  6. Remove the 2 bolts and the rear intake camshaft cap.
    Fig 3: Locating Rear Intake Camshaft Cap Bolts
    G08028552Courtesy of FORD MOTOR CO.
  7. Using a wrench on the flats of the intake camshaft to prevent cam rotation, remove the brake vacuum pump adapter.
    Fig 4: Locating Brake Vacuum Pump Adapter
    G08028553Courtesy of FORD MOTOR CO.
  8. NOTE: Turn the engine in the normal direction of rotation only.

    Using the crankshaft pulley bolt, turn the crankshaft clockwise to position the TDC  marked tooth on the crankshaft pulley (located on the 20th tooth counterclockwise from the missing tooth) at the 6 o'clock position.

    Fig 5: Turning Crankshaft Clockwise To Position Marked Tooth On Crankshaft Pulley
    G08030561Courtesy of FORD MOTOR CO.
  9. Remove the 2 bolts, the 2 nuts and the RH  halfshaft bracket.
    Fig 6: Locating Halfshaft Bracket Bolts And Nuts
    G08030562Courtesy of FORD MOTOR CO.
  10. Remove the engine plug bolt.
    Fig 7: Locating Engine Plug Bolt
    G08030563Courtesy of FORD MOTOR CO.
  11. Install the 303-507  .
    Fig 8: Identifying Crankshaft TDC Timing Peg
    G08030564Courtesy of FORD MOTOR CO.
  12. NOTE: The 303-507  will contact the crankshaft and prevent it from turning past TDC  . However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC  position during the crankshaft pulley removal and installation.
    NOTE: The engine front cover is shown removed in graphic for clarity.

    Rotate the crankshaft slowly clockwise until the crankshaft contacts the 303-507  .

    • The TDC  marked tooth on the crankshaft pulley will align with the center line of the CKP  sensor.
    Fig 9: Rotating Crankshaft Clockwise
    G08030565Courtesy of FORD MOTOR CO.
  13. NOTE: The 303-1565  is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
    NOTE: The camshaft timing slots are offset. If the 303-1565  cannot be installed, remove the 303-507  and rotate the crankshaft three-fourths of a revolution clockwise and repeat the previous 2 steps of this procedure.

    Install the 303-1565  into the rear of the intake camshaft slot as shown in illustration.

    Fig 10: Identifying Camshaft Alignment Tool
    G08028559Courtesy of FORD MOTOR CO.
  14. NOTE: The crankshaft must remain in the TDC  position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Strap Wrench and the bolt should be removed using an air impact wrench (1/2-in drive minimum).
    NOTE: The crankshaft sprocket diamond washer may come off with the crankshaft pulley. The diamond washer must be replaced. Remove and discard the diamond washer. If the diamond washer is not installed, engine damage may occur.

    Use the 303-D055  (D85L-6000-A) to hold the crankshaft pulley. Use an air impact wrench to remove the crankshaft pulley bolt.

    • Remove and discard the crankshaft pulley bolt and washer.
    • Remove the crankshaft pulley.
    • Remove the diamond washer and discard.
    Fig 11: Removing Crankshaft Pulley Bolt And Washer Sharp Wrench
    G08028560Courtesy of FORD MOTOR CO.
  15. If the diamond washer did not come off with the crankshaft pulley, remove the washer from the crankshaft and discard.
    Fig 12: Identifying Crankshaft Washer
    G08028561Courtesy of FORD MOTOR CO.
