Thermostat - Low Temperature: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |
| Motorcraft® Orange Antifreeze/Coolant Prediluted VC-3DIL-B (US); CVC-3DIL-B (Canada) |
WSS-M97B44-D2 |

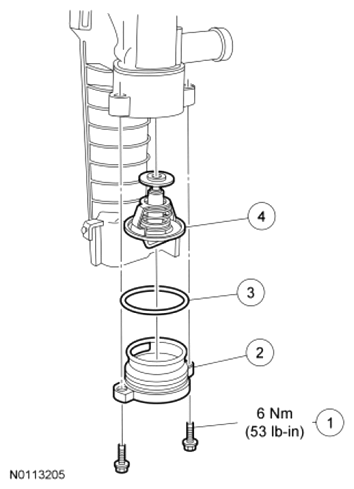

| Item | Part Number | Description |
|---|---|---|
| 1 | W500414 | Low temperature thermostat cover bolt (2 required) |
| 2 | 8A551 | Low temperature thermostat cover |
| 3 | 8D066 | Low temperature thermostat O-ring seal |
| 4 | 8575 | Low temperature thermostat |
