Degas Bottle: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

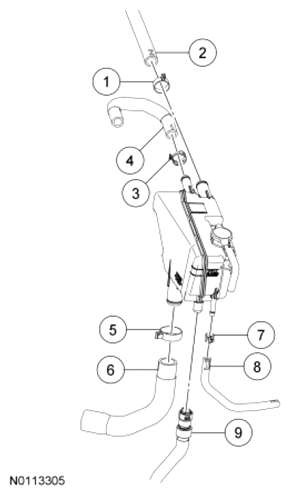

| Item |
Part Number |
Description |
| 1 |
W527366 |
Charge Air Cooler (CAC) and fuel cooler-to-degas bottle hose clamp |
| 2 |
8C481 |
CAC and fuel cooler-to-degas bottle hose |
| 3 |
W527362 |
EGR cooler-to-degas bottle hose clamp |
| 4 |
9Y439 |
EGR cooler-to-degas bottle hose |
| 5 |
W527372 |
Degas bottle-to-coolant pump hose clamp |
| 6 |
8C350 |
Degas bottle-to-coolant pump hose |
| 7 |
W527383 |
Degas bottle-to-radiator hose clamp |
| 8 |
8C012 |
Degas bottle-to-radiator hose |
| 9 |
7H256 |
Transmission fluid cooler-to-degas bottle hose |
Courtesy of FORD MOTOR CO.

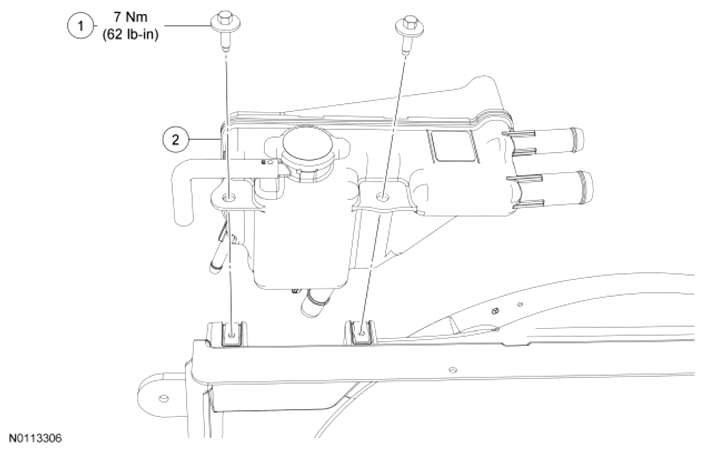

| Item |
Part Number |
Description |
| 1 |
W503924 |
Degas bottle bolt (2 required) |
| 2 |
8C045 |
Degas bottle |
