Body Mount #3

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Regular and Crew Cab, position the rear seat backrest forward.
  2. SuperCab, remove the rear seat backrest. For additional information, refer to SEATING .
    NOTE: Left Hand (LH) side shown, Right Hand (RH) side similar.
  3. NOTE: Do not apply heat to the body bolt from the underside of the vehicle or damage to the body insulator may occur.
    NOTE: The purpose for heating is to only loosen the threadlock and sealer on the bolt.

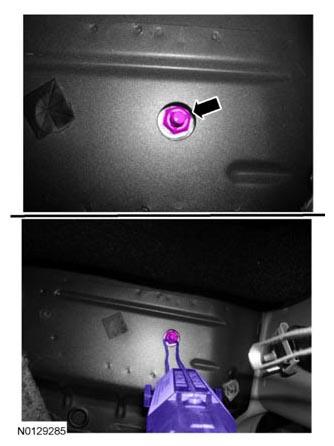

    Using the Mini-Ductor (IDIMD-600) or equivalent, apply heat to the cage nut for 15 seconds.

    G07975967
  4. NOTE: Body bolt installation is addressed in the cab-off procedure. For additional information, refer to BODY - DIESEL .

    Using a suitable tool, hold the cage nut and remove the body bolt with an impact tool.

  5. SuperCab, install the rear seat backrest. For additional information, refer to SEATING .
  6. Return to BODY - DIESEL .
