Turbocharger Wastegate Adjustment

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the turbocharger wastegate actuator vacuum hose.

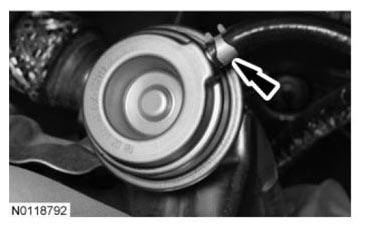

    Fig 1: Locating Turbocharger Wastegate Actuator Vacuum Hose
    G07481778Courtesy of FORD MOTOR CO.
  2. NOTE: The upper intake is removed for clarity only.

    Connect a vacuum source to the vacuum port of the turbocharger wastegate actuator, apply 34 kPa (10.0 in-Hg) to make sure it holds vacuum for 5 seconds and then release the vacuum.

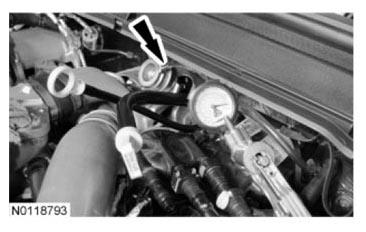

    Fig 2: Locating Vacuum Port Of Turbocharger Wastegate Actuator
    G07481779Courtesy of FORD MOTOR CO.
  3. NOTE: If vacuum is applied too fast, incorrect reading will occur.

    Very slowly apply vacuum while watching the turbocharger wastegate actuator rod end nut relative to the turbine housing, looking for the first signs of movement.

    • If the first sign of movement occurs between 28 kPa (8.3 in-Hg) to 34 kPa (10.0 in-Hg), no adjustment is needed. Remove the test vacuum source and connect the turbocharger wastegate actuator vacuum hose.
    • If movement is seen before 28 kPa (8.3 in-Hg) or after 34 kPa (10.0 in-Hg), adjust the turbocharger wastegate rod.

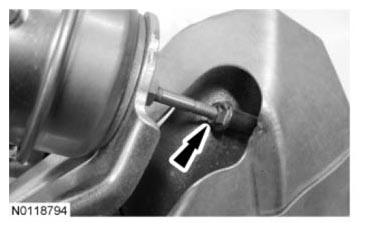

      Fig 3: Locating Turbocharger Wastegate Actuator Rod End Nut
      G07481780Courtesy of FORD MOTOR CO.
  4. NOTE: The following steps are only for the adjustment of the turbocharger wastegate actuator rod.

    Remove the upper intake manifold. For additional information, refer to ENGINE - 6.7L DIESEL .

  5. Count and note the number visible threads on the turbocharger wastegate actuator rod.

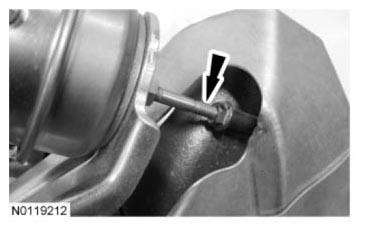

    Fig 4: Locating Turbocharger Wastegate Actuator Rod
    G07481781Courtesy of FORD MOTOR CO.
  6. Loosen the rod end nut 10 mm (0.393 in) to allow rod end adjustment.

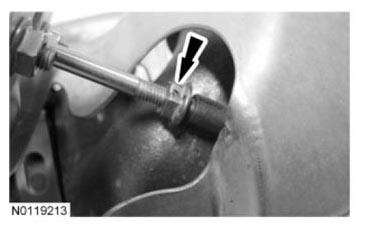

    Fig 5: Locating Rod End Nut
    G07481782Courtesy of FORD MOTOR CO.
  7. Remove the 2 turbocharger wastegate actuator nuts.

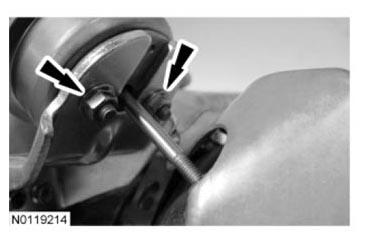

    Fig 6: Locating Turbocharger Wastegate Actuator Nuts
    G07481783Courtesy of FORD MOTOR CO.
  8. NOTE: If actuator rod movement is less than 28 kPa (8.3 in-Hg), rotate the turbocharger wastegate actuator counterclockwise. If actuator rod movement is greater than 34 kPa (10 in-Hg), rotate the turbocharger wastegate actuator clockwise.
    NOTE: One full turn equals one thread.

    Pull the turbocharger wastegate actuator out of the bracket and rotate clockwise or counterclockwise in 360° increments until 11 threads are visible as a starting point.

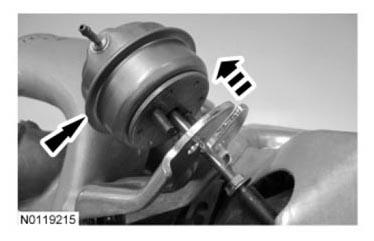

    Fig 7: Pulling Turbocharger Wastegate Actuator From Bracket
    G07481784Courtesy of FORD MOTOR CO.
  9. Install the turbocharger wastegate actuator back into the bracket.

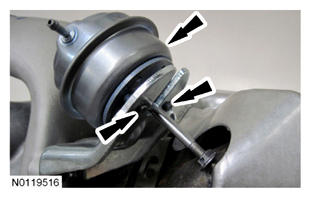

    Fig 8: Locating Turbocharger Wastegate Actuator And Bracket Mounting Bolts
    G08601906Courtesy of FORD MOTOR CO.
  10. Applying force by hand, hold the turbocharger wastegate actuator into the bracket and retest.
    • If actuator rod movement is seen before 28 kPa (8.3 in-Hg), turn the turbocharger wastegate actuator one more turn counterclockwise and retest.
    • If movement is not seen before 34 kPa (10.0 in-Hg), turn the turbocharger wastegate actuator one turn clockwise and retest.
  11. If actuator rod movement is seen between 28 kPa (8.3 in-Hg) and 34 kPa (10.0 in-Hg), install the turbocharger wastegate actuator bracket nuts.
    • Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas below.
    • Tighten to 6 Nm (53 lb-in).
      G00468730
      Fig 9: Locating Turbocharger Wastegate Actuator Bracket Nuts
      G07481783Courtesy of FORD MOTOR CO.
  12. Tighten the rod jam nut.
    Fig 10: Locating Turbocharger Wastegate Actuator Rod End Nut
    G07481780Courtesy of FORD MOTOR CO.
  13. Retest the turbocharger wastegate actuator one additional time.
  14. If actuator rod movement is not seen between 28 kPa (8.3 in-Hg) and 34 kPa (10.0 in-Hg), repeat steps  6 through  13.
  15. If actuator rod movement is seen between 28 kPa (8.3 in-Hg) and 34 kPa (10.0 in-Hg), connect the turbocharger wastegate actuator vacuum hose.
    Fig 11: Locating Turbocharger Wastegate Actuator Vacuum Hose
    G07481778Courtesy of FORD MOTOR CO.
  16. Install the upper intake manifold. For additional information, refer to ENGINE - 6.7L DIESEL .
