Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Lift the windshield wiper pivot arm to the full upright position.

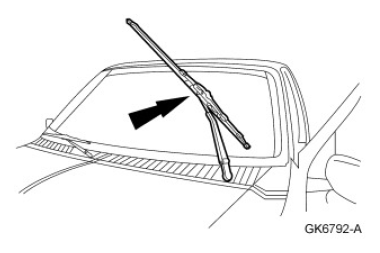

Fig 1: Locating Windshield Wiper Pivot Arm Full Upright Position
Courtesy of FORD MOTOR CO.
Remove the windshield wiper pivot arm.
1. Release the locking tab.
2. Remove the windshield wiper pivot arm.

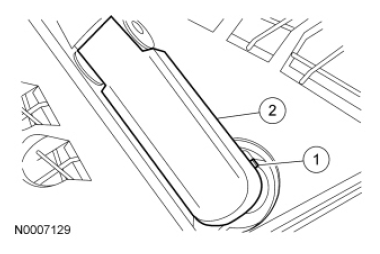

  Fig 2: Identifying Windshield Wiper Pivot Arm And Locking Tab
  Courtesy of FORD MOTOR CO.
NOTE: During installation, it is necessary to pull the locking tab out to its full open (unlatched) position and hold while assembling the pivot arm onto the mounting arm and pivot shaft. Align the key on the pivot arm head with the keyway on the shafts. This will make sure the pivot arm is correctly aligned. If necessary, the key can be removed. To adjust wiper pivot arms, refer to WIPER BLADE AND PIVOT ARM ADJUSTMENT .

To install, reverse the removal procedure.
