Side Airbag: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

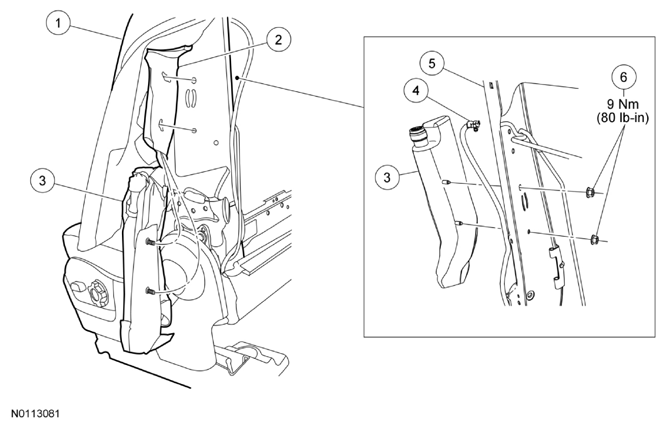

NOTE:
Driver seat shown, passenger similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64417 | Backrest cover |
| 2 | - | Deployment chute (part of 64417) |
| 3 | 611D10 | Side air bag module |
| 4 | - | Electrical connector (part of 14K155) |
| 5 | 61018 | Seat backrest frame |
| 6 | W520111 | Side air bag module nuts (2 required) |
