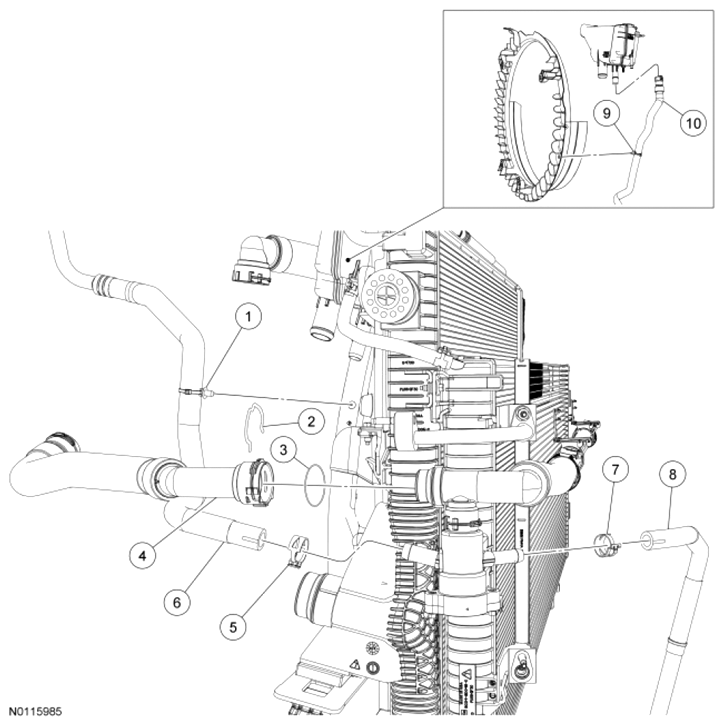

RH Secondary Coolant Hoses
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Secondary radiator-to-EGR cooler hose retainer |
| 2 | 8D037 | Secondary coolant pump-to-secondary radiator hose spring clip (part of 8A365) |
| 3 | 8D058 | Secondary coolant pump-to-secondary radiator hose O-ring seal (part of 8A365) |
| 4 | 8A365 | Secondary coolant pump-to-secondary radiator hose |
| 5 | W527362 | Secondary radiator-to-EGR cooler hose clamp |
| 6 | 9Y438 | Secondary radiator-to-EGR cooler hose |
| 7 | W527359 | Secondary radiator-to-transmission fluid cooler hose clamp |
| 8 | 7H255 | Secondary radiator-to-transmission fluid cooler hose |
| 9 | - | Transmission fluid cooler-to-secondary degas bottle hose retainer |
| 10 | 7H256 | Transmission fluid cooler-to-secondary degas bottle hose |
