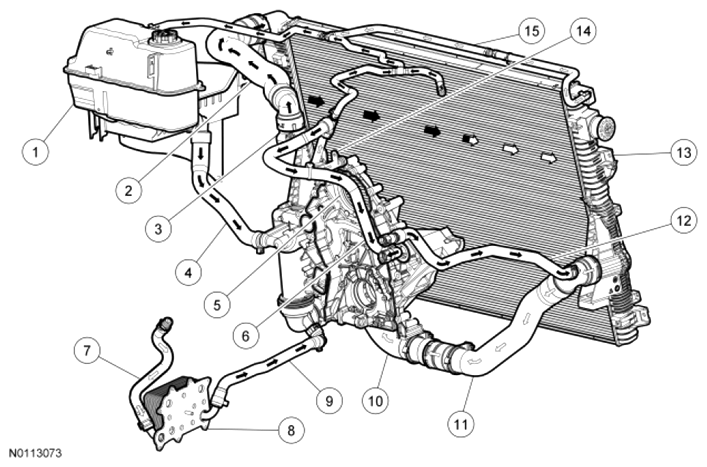

Coolant Flow Diagram - Radiator
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Black arrows indicate hot, white arrows indicate cold.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8A080 | Degas bottle |
| 2 | 8B274 | Upper radiator hose |
| 3 | 8594 | Coolant outlet connector |
| 4 | 8C351 | Degas bottle-to-engine hose |
| 5 | 8501 | Coolant pump |
| 6 | 18K579 | Heater inlet hose |
| 7 | 6B851 | Engine oil cooler inlet hose |
| 8 | 6C615 | Engine oil cooler assembly |
| 9 | 6B850 | Engine oil cooler outlet hose |
| 10 | 8D033 | Lower rear radiator hose |
| 11 | 8286 | Lower radiator hose |
| 12 | - | Heater outlet hose (part of 8286) |
| 13 | 8005 | Radiator |
| 14 | 18696 | Heater inlet tube |
| 15 | 8W005 | Radiator overflow hose |
