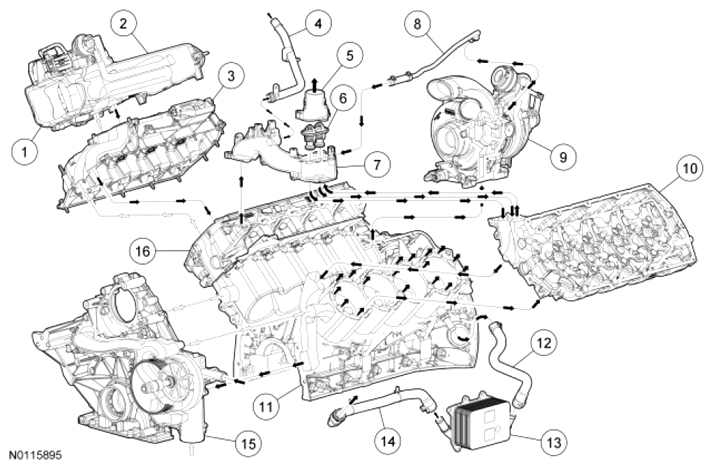

Coolant Flow Diagram - Engine
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9U466 | EGR valve and bypass assembly |
| 2 | 9F464 | EGR cooler |
| 3 | 6582 | RH valve cover |
| 4 | 18696 | Heater inlet tube |
| 5 | 8594 | Coolant outlet connector |
| 6 | 8575 | Thermostat assembly |
| 7 | 8C368 | Coolant crossover manifold assembly |
| 8 | 9U469 | Turbocharger coolant outlet hose |
| 9 | 9G438 | Turbocharger |
| 10 | 6050 | LH cylinder head |
| 11 | 6010 | Cylinder block |
| 12 | 6B851 | Oil cooler inlet hose |
| 13 | 6C615 | Engine oil cooler |
| 14 | 6B850 | Oil cooler outlet hose |
| 15 | 8501 | Coolant pump |
| 16 | 6090 | RH cylinder head |
