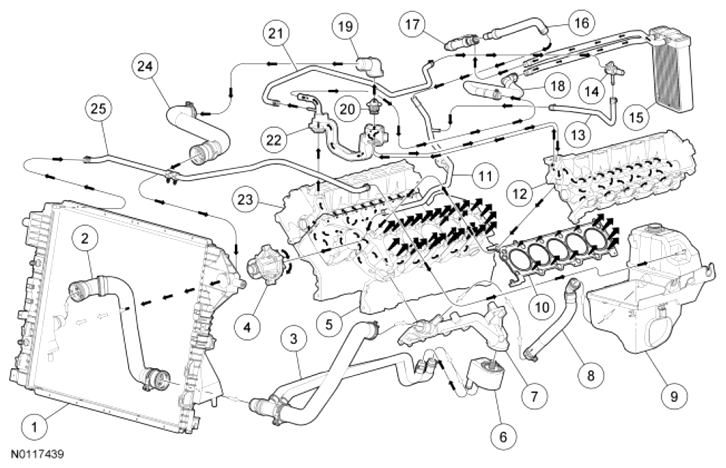

Coolant Flow Diagram, 6.8L
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Black arrows indicate hot, white arrows indicate cold.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8005 | Radiator assembly |
| 2 | 8286 | Lower radiator hose assembly |
| 3 | 8286 | Lower radiator hose assembly |
| 4 | 8501 | Coolant pump |
| 5 | 6010 | Cylinder block |
| 6 | 6A642 | Oil cooler assembly |
| 7 | 6884 | Oil filter adapter |
| 8 | 8075 | Degas bottle-to-oil filter adapter hose |
| 9 | 8A080 | Degas bottle assembly |
| 10 | 6083 | LH cylinder head gasket |
| 11 | 18663 | Heater coolant outlet tube |
| 12 | 6050 | LH cylinder head |
| 13 | 18465 | Heated PCV fitting outlet hose |
| 14 | 9A474 | Heated PCV fitting |
| 15 | 19B555 | Heater core |
| 16 | 18K580 | Heater core outlet hose - from heater core |
| 17 | 18K580 | Heater core outlet hose - to heater coolant outlet tube |
| 18 | 18K579 | Heater inlet hose assembly |
| 19 | 8592 | Coolant outlet connection |
| 20 | 8575 | Thermostat |
| 21 | 18465 | Heated PCV fitting inlet hose |
| 22 | 8C369 | Coolant crossover assembly |
| 23 | 6049 | RH cylinder head |
| 24 | 8260 | Upper radiator hose assembly |
| 25 | 8075 | Degas bottle coolant inlet hose |
