Instrument Panel and Instrument Cluster Finish Panels and Fasteners
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

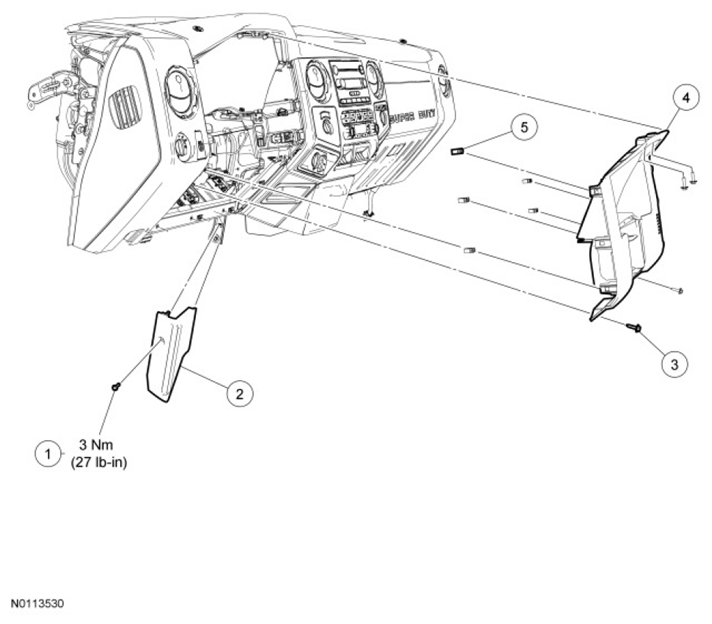

| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Instrument panel lower support bracket cover bolt |
| 2 | 04632 | Instrument panel lower support bracket cover |
| 3 | W707628 | Instrument cluster finish panel screw (4 required) |
| 4 | 044D70 | Instrument cluster finish panel |
| 5 | W712210 | Instrument cluster finish panel retaining clip (5 required) |
