Seat - Front, Bucket Seat: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to the INSTALLATION steps in this procedure for seat track-to-floor retainer tightening sequence and specification.

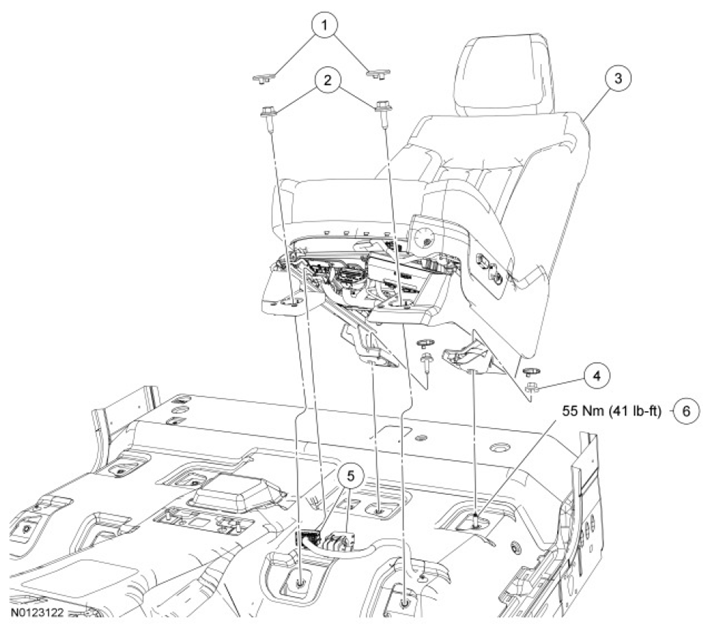

| Item | Part Number | Description |
|---|---|---|
| 1 | 672A40 | Retainer cover |
| 2 | W714718 | Seat track-to-floor bolts (3 required) (new bolts must be installed) |
| 3 | - | Bucket seat |
| 4 | W714991 | Seat track-to-floor nut |
| 5 | - | Electrical connector(s) (if equipped) (part of 14A005) |
| 6 | W706413 | Seat mounting stud |
