Seat Backrest - Rear, SuperCab: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

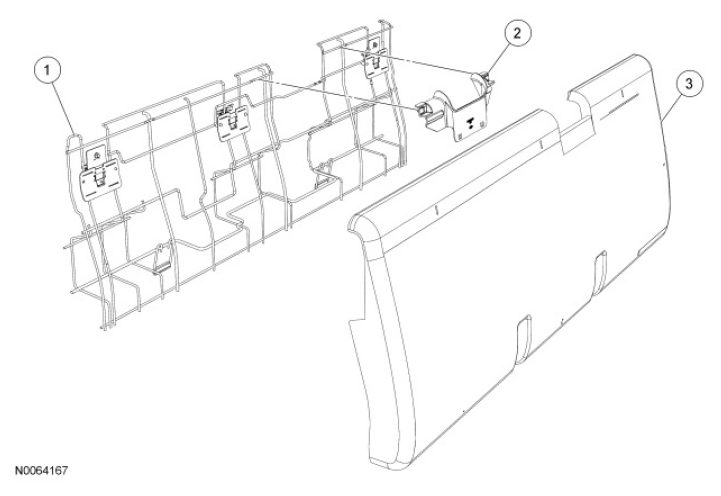

Fig 1: Identifying Rear Seat Backrest (SuperCab)
G06764109Courtesy of FORD MOTOR CO.
Item Part Number Description
1 613A38 Backrest frame
2 62400 Seat support
3 66600/66800 Backrest trim cover/backrest foam pad
