Bucket Seat Backrest with Power and Climate Control
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to the INSTALLATION steps in this procedure for recliner-to-seat track bolt tightening sequence and specification.

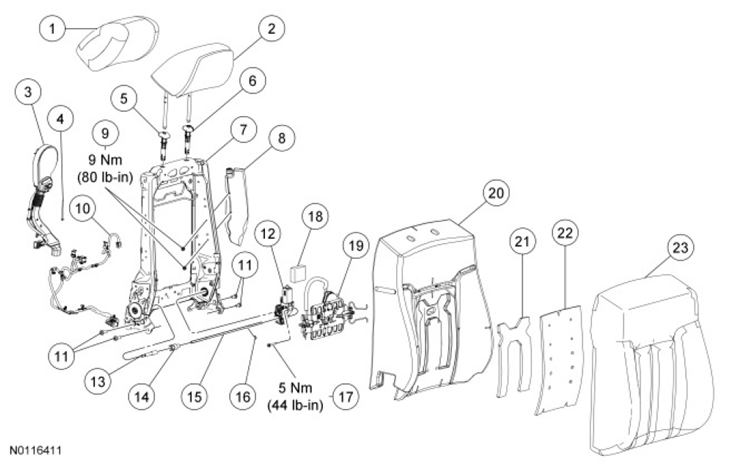

Fig 1: Front Seat Backrest Replacement Components With Torque Specifications (Bucket Seat Backrest With Power And Climate Control)
| Item | Part Number | Description |
|---|---|---|
| 1 | 610A62 | Head restraint cover |
| 2 | 611A08 | Head restraint |
| 3 | 19N550 | Backrest Thermo-Electric Device (TED) (if equipped) |
| 4 | 95875 | Tie strap (2 required) |
| 5 | 610A18 | Head restraint guide sleeve (non-locking) |
| 6 | 610A16 | Head restraint guide sleeve (locking) |
| 7 | 61018 | Backrest frame |
| 8 | 611D10 RH/611D11 LH | Side air bag module (if equipped) |
| 9 | W520111 | Side air bag module nuts (if equipped) |
| 10 | 14D232 | Backrest wire harness |
| 11 | W500433 | Recliner-to-seat track bolts (4 required) |
| 12 | 14547 | Power recline motor |
| 13 | 613A68 | Short recliner shaft |
| 14 | 613A68 | Sleeve |
| 15 | 613A68 | Long recliner shaft |
| 16 | 61479 | Recliner shaft E-clip |
| 17 | W701242 | Power recline motor bolt |
| 18 | 25600E50 | Foam pad (passenger seat only) |
| 19 | 65500/65501 | Power lumbar assembly/manual lumbar assembly |
| 20 | 64810 RH/64811 LH | Backrest foam pad |
| 21 | 18D507 | Climate controlled seat backrest manifold (if equipped) |
| 22 | - | Topper foam |
| 23 | 64416 RH/64417 LH | Backrest cover |
