Hydraulic Control Unit (HCU): Material
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

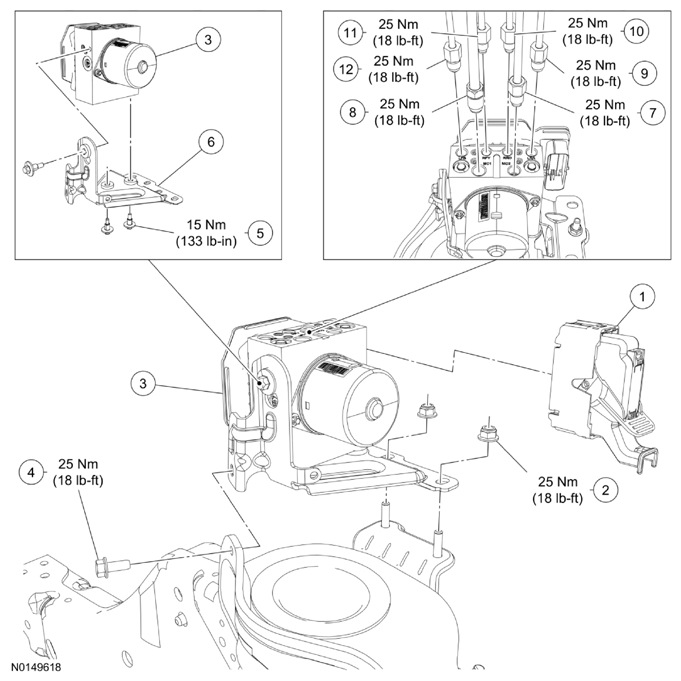

| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS module electrical connector (part of 14405) |
| 2 | W520112 | Hydraulic Control Unit (HCU) bracket-to-body nut (2 required) |
| 3 | 2C215 | HCU |
| 4 | W714986 | HCU bracket-to-body bolt |
| 5 | - | HCU-to-HCU bracket bolt (3 required) (part of 2C304) |
| 6 | 2C304 | HCU bracket |
| 7 | - | Master cylinder secondary brake tube fitting (part of 2C295) |
| 8 | - | Master cylinder primary brake tube fitting (part of 2C294) |
| 9 | - | LR caliper brake tube fitting (part of 2C287) |
| 10 | - | RR caliper brake tube fitting (part of 2C287) |
| 11 | - | RF caliper brake tube fitting (part of 2263) |
| 12 | - | LF caliper brake tube fitting (part of 2264) |
