Rear Brake Caliper - F-450, F-550: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

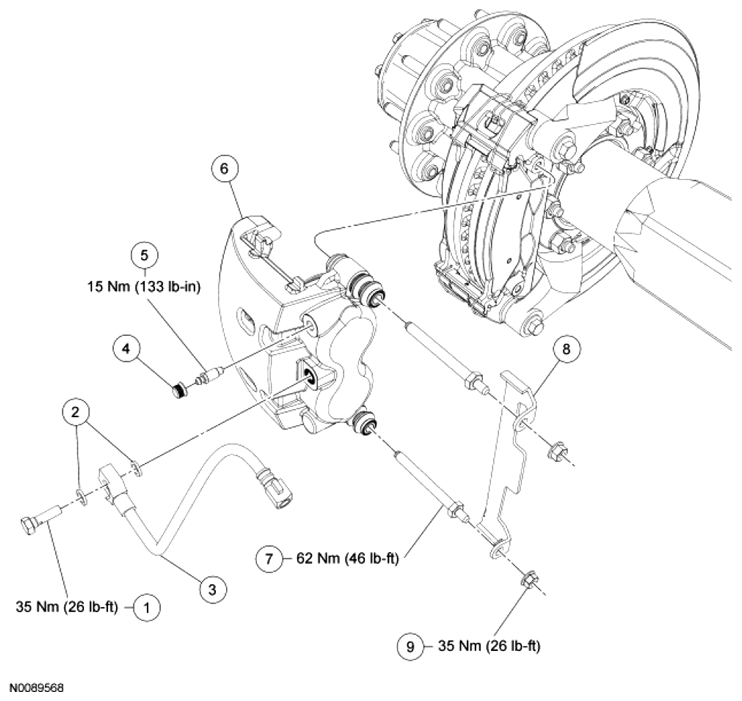

| Item | Part Number | Description |
|---|---|---|
| 1 | 385116 | Brake caliper flow bolt |
| 2 | 2149 | Copper washers |
| 3 | 2268 | Brake flexible hose |
| 4 | 2L126 | Bleeder screw cap |
| 5 | 2208 | Bleeder screw |
| 6 | 2B120 RH/2B121 LH | Brake caliper |
| 7 | 2C150 | Brake caliper bolt (2 required) |
| 8 | 2B085 | Brake tube shield |
| 9 | N800937 | Brake tube shield nut (2 required) |
