Driveshaft - Rear, 3-Piece
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

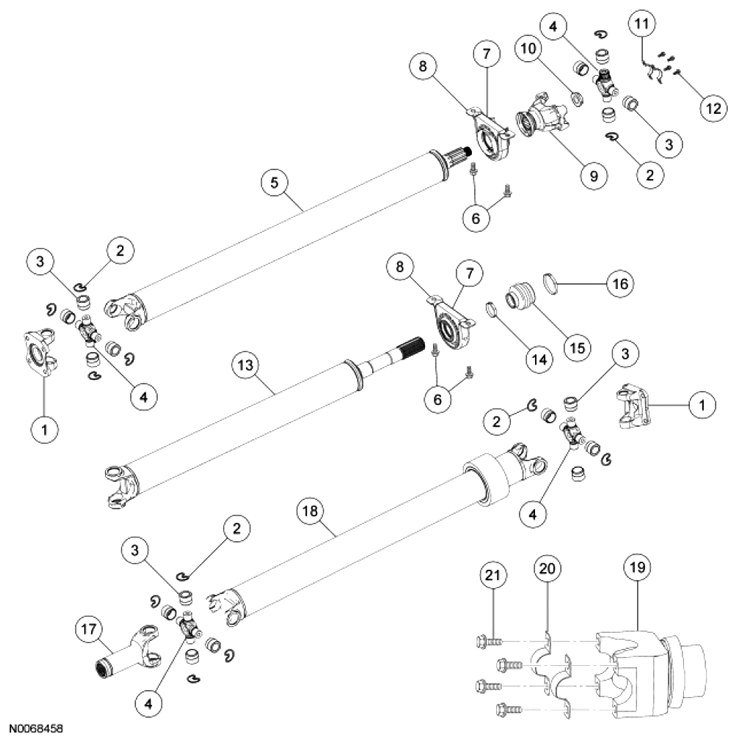

| Item | Part Number | Description |
|---|---|---|
| 1 | 4A378 | Driveshaft circular flange yokes |
| 2 | - | Snap rings (part of 4635) |
| 3 | - | U-joint bearing caps (part of 4635) |
| 4 | - | U-joint spiders (part of 4635) |
| 5 | 4817 | Forward driveshaft (part of 4R602 assembly) |
| 6 | 567610 | Driveshaft center bearing support bolts |
| 7 | 4800 | Driveshaft center bearing support |
| 8 | 4A499 | Driveshaft center bearing brackets |
| 9 | 4851 | Driveshaft yoke |
| 10 | 4320 | Nut |
| 11 | 4A254 | U-joint bearing strap (2 required) |
| 12 | 4N272 | U-joint bearing strap bolt (4 required) |
| 13 | 4K357 | Center driveshaft (part of 4R602 assembly) |
| 14 | 4K227 | Driveshaft slip yoke boot clamp (small) |
| 15 | 4841 | Driveshaft slip yoke boot |
| 16 | 4K227 | Driveshaft slip yoke boot clamp (large) |
| 17 | 4841 | Driveshaft slip yoke |
| 18 | 4K185 | Rearward driveshaft (part of 4R602 assembly) |
| 19 | 4841 | Pinion yoke |
| 20 | 4A254 | U-joint bearing strap (2 required) |
| 21 | 4N272 | U-joint bearing strap bolt (4 required) |
-
NOTE: Driveshafts differ in length, diameter, material, number of pieces and the type of slip yokes to accommodate various wheel base and powertrain combinations.
Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications and Special Tools. Items in the exploded views may not be listed in the order of disassembly.
