Drive Pinion Flange and Drive Pinion Seal: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Installer, Drive Pinion Flange 205-936 |
|
| Installer, Drive Pinion Flange 205-435 |
|
| Installer Drive Nut, Drive Pinion Flange 205-437 |
|
| Installer, Drive Pinion Oil Seal 205-440 |
|
| Installer, Drive Pinion Oil Seal 205-935 |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A and GL-5 |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

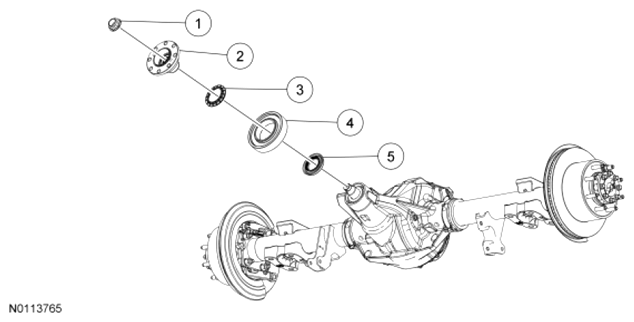

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Drive pinion nut |
| 2 | 4851 | Drive pinion flange |
| 3 | 4859 | Pinion dust deflector |
| 4 | 4851 | Drive pinion flange dampener |
| 5 | 4676 | Drive pinion oil seal |
