Differential Ring And Pinion: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Adapter for 205-S127 205-281 (T88T-4020-B) |
|
| Adapter for 205-S156 205-159 (T80T-4020-F42) |
|
| Adapter for 205-S156 205-160 (T80T-4020-F43) |
|
| Collets, Differential Carrier Bearing 205-430 (Part of 205-S419) |
|
| Depth Gauge/Aligner, Drive Pinion 205-937 |
|
| Depth Gauge, Drive Pinion 205-423 |
|
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |
|
| Drawbar, Rear Axle 205-098 (T75T-1176-A) |
|
| Gauge, Clutch Housing 308-021 (T75L-4201-A) |
|
| Gauge Tube 205-D038 (D81T-4020-F51) |
|
| Handle (Long) 205-D055 (D81L-4000-A) or equivalent |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Installer, Differential Carrier Bearing 205-D044 (D81T-4221-A) or equivalent |
|
| Installer, Differential Shim 205-228 (T85T-4067-AH) |
|
| Installer, Drive Pinion Bearing 205-231 (T85T-4616-AH) |
|
| Installer, Drive Pinion Bearing 205-232 (T85T-4621-AH) (early build) |
|
| Installer, Drive Pinion Bearing 205-488 (late build) |
|
| Installer, Drive Pinion Flange 205-936 |
|
| Installer, Drive Pinion Flange 205-435 |
|
| Installer Drive Nut, Drive Pinion Flange 205-437 |
|
| Installer, Drive Pinion Oil Seal 205-935 |
|
| Installer, Drive Pinion Oil Seal 205-440 |
|
| Installer, Input Shaft Bearing Cup 308-391 |
|
| Plate, Bearing/Oil Seal 205-090 (T75L-1165-B) |
|
| Protector, Drive Pinion Thread 205-229 (T85T-4209-AH) |
|
| Removal Screw, Bearing Tube 308-092 (T84T-7025-B) |
|
| Remover, Tube 308-052 (T77J-7025-B) |
|
| Retaining Ring, Differential Carrier Bearing 205-431 (Part of 205-S419) |
|
| Step Plate, Differential Carrier Bearing 205-432 (Part of 205-S419) |
MATERIAL
| Item | Specification |
|---|---|
| Clear Silicone Rubber TA-32 |
ESB-M4G92-A |
| Motorcraft® High Contrast Hypoid Gear Marking Compound XG-14 |
- |
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A and GL-5 |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

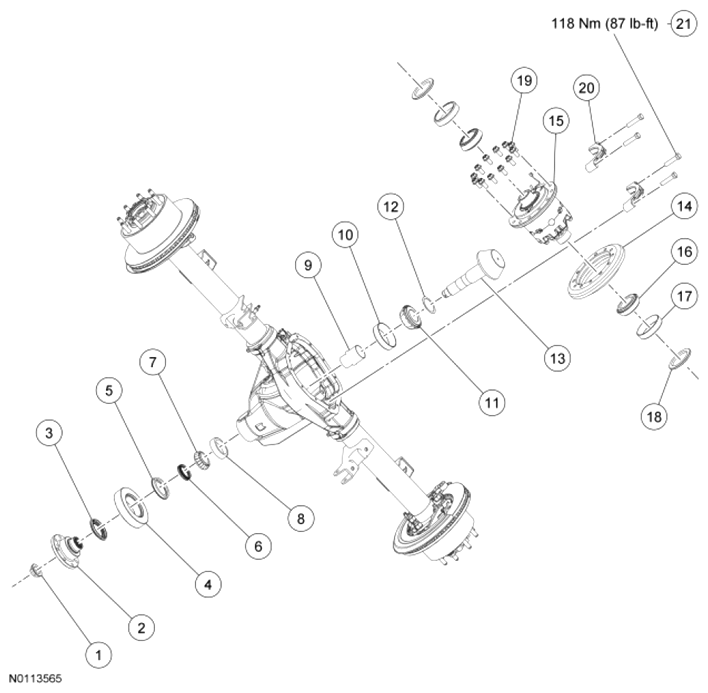

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Drive pinion nut |
| 2 | 4851 | Drive pinion flange |
| 3 | 4859 | Pinion dust deflector |
| 4 | 4851 | Drive pinion flange damper |
| 5 | 4676 | Drive pinion oil seal |
| 6 | 4670 | Pinion oil slinger |
| 7 | 4621 | Outer pinion bearing |
| 8 | 4616 | Outer pinion bearing cup |
| 9 | 4662 | Collapsible spacer |
| 10 | 4630 | Inner pinion bearing cup |
| 11 | 4630 | Inner pinion bearing |
| 12 | 4663 | Pinion bearing adjustment shim |
| 13 | 4209 | Drive pinion |
| 14 | 4204 | Differential assembly |
| 15 | 4221 | Differential carrier bearing (2 required) |
| 16 | 4222 | Differential carrier bearing cup (2 required) |
| 17 | 4067 | Differential carrier bearing shim (2 required) |
| 18 | 4216 | Differential ring gear bolt (12 required |
| 19 | - | Differential bearing cap (part of 4010) (2 required) |
| 20 | - | Differential bearing cap bolt (part of 4010) (4 required) |
